Top-Rated TFT Display Modules For Industrial Applications

Top-rated industrial TFT display modules combine high brightness, wide operating temperature ranges, rugged durability, long-term availability, and strong customization support.

If you are an engineer, product designer, or procurement professional, this guide will help you evaluate specifications, compare options, and choose reliable display module TFT LCD manufacturers.

You will learn which specifications matter most for demanding environments, how to assess supplier capabilities, and what separates a durable display from a consumer-grade panel.

Use this practical reference to specify displays with confidence. The right module will deliver long service life, clear readability, and dependable operation in the harshest conditions of your application.

Key Takeaways

• Match display brightness to your environment. Direct sunlight needs 1,000 nits minimum. Industrial HMIs need 800–1,000 nits.
• Choose wide-temperature LCDs for harsh conditions. Verify cold-start operation, not just storage range.
• Use optical bonding for outdoor and industrial displays. Bonding boosts contrast and protects against shock and vibration.
• Demand long-term availability from suppliers. Request a five-year supply guarantee and six-month end-of-life notice.
• Ask for test reports and certifications before production. A reliable supplier provides evidence of quality and durability.

Why Industrial Buyers Choose TFT Display Modules

Engineers choose TFT LCD technology because active-matrix backplanes switch each pixel individually. Per-pixel switching eliminates ghosting and lag. You also get high resolution, fast refresh, and grayscale fidelity. A 2024 study by Display Supply Chain Consultants projects that over 85% of all new factory-equipment display designs in 2025 will use TFT LCD technology. The consensus reflects lower cost, longer lifespan, and dependable performance. You can add touch layers, optical bonding, or protective coatings later.

Long-Term Availability and Industrial Life Cycles

You need a display module that matches your product's service life. TFT panels support OEM lifecycles of 5–10 years without abrupt discontinuation. OLED risks burn-in on static HMI screens and lasts roughly 30,000 hours. A typical TFT unit reaches 50,000–100,000 hours. One controller manufacturer switched from a 16x2 passive LCD to a 4.3-inch TFT display module. The module delivered 480x272 resolution, 1000 nits brightness, IPS viewing, resistive touch, and -20°C to +70°C operation. Customer satisfaction improved by 40%, field failures dropped by 60%, and the average selling price rose 15%. The upgrade shows what an IPS TFT LCD display module can deliver.

Display Module TFT LCD Sizes, Resolutions, and Interfaces

TFT display modules range from 0.96 to 15.6 inches. Standard sizes include 2.0, 3.5, 4.3, 5.0, 5.7, 7.0, 8.0, 10.1, 10.4, 12.1, 13.3, and 15.6 inches. Small panels suit embedded instruments; larger ones fit HMI control stations. Full Color TFT LCD Displays provide 16.7 million colors and wide viewing angles.

Interface selection matters as much as size. LVDS dominates industrial use. You get robust signal integrity over 1–5 meter cable runs with strong EMI resistance. Amorphous silicon TFT remains the workhorse when resolution stays below Full HD and power draw is not critical. RGB/TTL provides predictable timing but uses many wires. MIPI DSI suits smartphones and embedded Linux boards. HDMI needs a bridge chip for internal LCDs.

Display module manufacturers and TFT display manufacturers support long procurement cycles with engineering assistance and stable supply. A custom TFT LCD display built around your exact requirements ensures the right size, interface, and environmental performance. TFT/LCD display modules from reliable partners give you durable construction and dependable supply for years.

How to Evaluate TFT Display Modules for 2026

When you evaluate TFT display modules for 2026, you need a structured method. Many display modules claim industrial durability, but only a few provide test evidence. The right display module must satisfy optical, thermal, mechanical, and regulatory requirements. A spec sheet alone will not tell you how a module behaves at -30°C or under direct summer sun.

Brightness, Temperature, and Sunlight Readability

Brightness is your first decision point. Direct sunlight and outdoor kiosks demand 1,000 nits minimum; kiosks typically run 1,000-1,500 nits. Industrial HMI displays need 800-1,000 nits. Outdoor shade or indirect sunlight requires 700-1,000 nits, with 700-800 nits for indirect exposure. Bright indoor and retail environments fall at 400-700 nits, while indoor office use requires only 200-350 nits.

Consider a tractor OEM that chose 600-nit displays to save $30 per unit. Field returns reached 40% within one year because sunlight glare made displays unreadable. Switching to 1,000-nit bonded displays stopped the returns. That $30 unit saving led to roughly $500,000 in warranty claims. This is why you should select high-brightness and sunlight-readable displays from the start.

High-brightness & sunlight-readable TFT variants are not just for outdoor kiosks. In a bright workshop or near a window, 800-1,000 nits prevents squinting and misreads.

Temperature rating matters equally. Standard-temperature LCDs fail below freezing. For outdoor or unheated enclosures, select wide-temperature LCDs such as -20°C to +70°C or -30°C to +80°C. These wide-temperature and sealed/rugged TFT panels maintain the liquid-crystal operating phase over a broader range.

You must verify the operating temperature range, not only the storage range. Storage temperature applies while powered off; the display only needs to survive and recover. For example, -40°C storage does not guarantee -30°C cold-start operation. Cold-start testing is essential for outdoor and harsh environments. High-temperature exposure causes contrast and color shift. Use high-temperature LC formulations and polarizers rated for elevated temperatures.

Contrast is the second half of readability. The human eye needs a 3:1 contrast ratio to read well. Standard displays can fall below 1:1 in direct sunlight. Optical bonding improves contrast by 30-40% and reduces internal reflections by 60-70%. These gains make sunlight-readable lcds practical even with moderate backlight power.

For extreme outdoor installations, you may need sunlight-readable modules with anti-glare surfaces and high-brightness LED backlights. An IPS TFT LCD Display Module gives you wide viewing angles, which matters when operators approach the panel from an angle.

Touch Integration, Optical Bonding, and Certifications

Touch integration should match the operator's environment. Full Color TFT LCD Displays are common in industrial HMIs. Resistive touch works with gloves and stylus, which suits many industrial applications. Capacitive touch offers multi-touch and optical clarity. For industrial and rugged TFT displays, projected capacitive touch provides reliable input in dusty and wet conditions.

Optical bonding removes the air gap between the cover glass and the LCD. It reduces internal reflections and improves contrast and viewing comfort in bright environments. The bonded layers add structural support, making the display module more resistant to shock, vibration, and mechanical impact. That combination is why optical bonding is essential for outdoor, industrial, and high-reliability applications.

Optical bonding outperforms traditional air bonding by cutting internal reflections, which boosts contrast and sunlight readability, while also strengthening the display module's durability and structural integrity. It is recommended for outdoor, industrial, and high-reliability applications.

The adhesive layer absorbs and spreads shock energy across the laminated module. Bonded industrial TFT LCD modules meet IEC 60068 and MIL-STD-810H vibration and shock requirements. This durability matters for machinery, rail, and mobile equipment.

Certifications determine where you can sell and install the display. IEC 61000 addresses EMC immunity for electrically noisy industrial sites. IP65–IP69K ratings match sealing to dust, water, and high-pressure washdown. MIL-STD-810H validates environmental ruggedness for vehicles and shock-prone sites.

Environmental stress testing follows published standards. MIL-STD-810H (latest 2019 revision) defines realistic combined temperature-vibration tests. Specify methods 501.7, 502.7, 503.7, 514.8, and 516.8 to validate operation in vehicles and shock-prone industrial sites. IEC 60068, EN 50155, and MIL-STD-810H certify for rail and machinery vibration; ensure no glass cracking or touch failure. IP65-IP69K ratings match sealing level to dust, water, and high-pressure washdown conditions.

A reliable industrial-grade TFT LCD module also comes from a supplier with documented test data and long-term availability. Request the full test report before trial production. Verify that your display module TFT LCD supplier offers a 5-year supply guarantee and provides a 6-12 month EOL notice. This discipline matters more in 2026 as EU eco-design rules such as DPP/ESPR shape material and compliance requirements. When standard sizes do not fit your enclosure, request a Custom TFT LCD Display with your exact mechanical and electrical specification.

Top-Rated TFT LCD Modules for 2026

For 2026, two module categories stand out: a 7.0-inch high-brightness IPS panel for outdoor HMIs and a 10.1-inch optically bonded capacitive touch display for factory automation. TFT display modules span 0.96 to 15.6 inches, including square monitors and small LCD screens.

High-Brightness IPS Module for Outdoor HMIs

The high-brightness IPS module delivers 1000 nits, the established minimum for direct-sunlight readability. IPS alignment provides wide viewing angles, and optical bonding cuts internal reflections by 60-70% to boost contrast in bright environments.

A high brightness value alone does not guarantee direct-sunlight readability. Outdoor HMI performance depends on optical bonding, anti-reflective treatment, cover glass, ambient light, and enclosure design. Industry guidance calls for 1,000 nits minimum in direct sunlight, with kiosks typically running 1,000-1,500 nits. A high-brightness panel with anti-glare coating and optical bonding maintains readable contrast by reducing glare.

High-brightness backlights consume power and generate heat. Because brightness raises power and heat, match target brightness to actual ambient illumination and viewing direction. Confirm the rated half-brightness lifetime—typically 50,000–70,000 hours for continuous operation—and plan thermal management accordingly. Passive cooling using an aluminum extrusion enclosure can work; a fan may not be required.

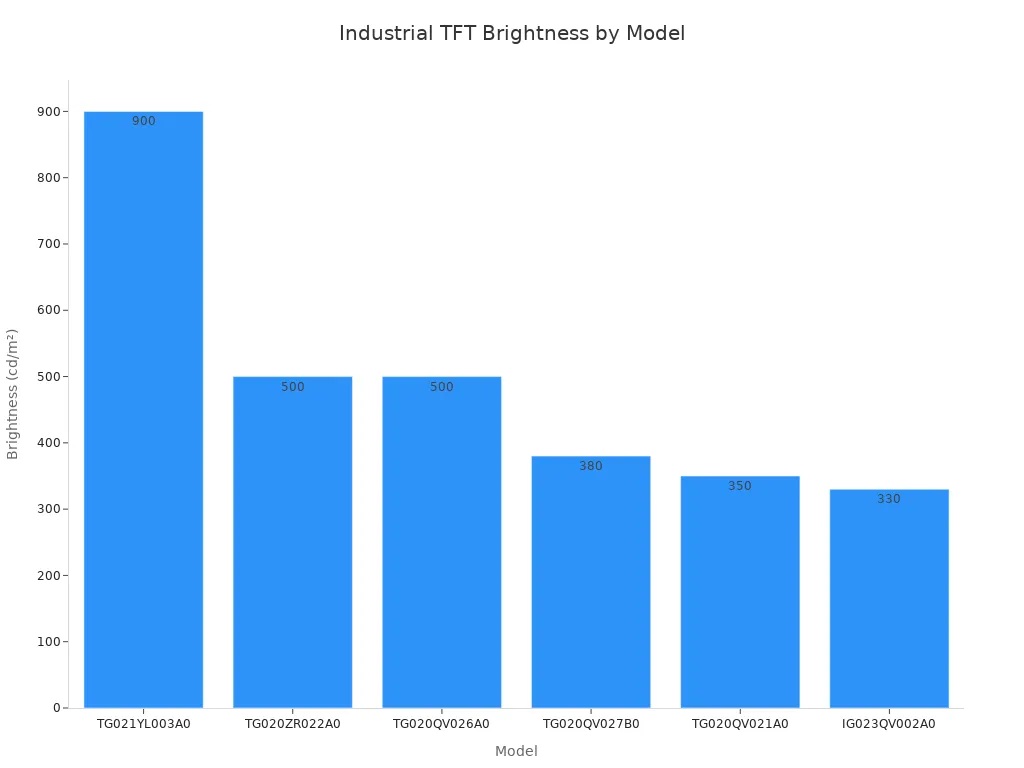

The chart below compares brightness across six display modules.

For compact outdoor status panels, small TFT modules are available with high-brightness backlights and wide-temperature ranges, proving that small size does not limit environmental toughness.

Optically Bonded Touch Module for Factory Automation

For factory automation, choose a 10.1-inch optically bonded capacitive touch TFT. Optical bonding removes the air gap between cover glass and LCD, cuts internal reflections, and improves contrast in bright shop-floor lighting. This construction also spreads shock energy across the laminated panel. This IPS TFT LCD Display Module suits control stations where operators need crisp graphics and stable touch.

Full Color TFT LCD Displays deliver 16.7 million colors and wide viewing angles. When you specify optically bonded modules, ask the display module manufacturer for test data confirming IEC 60068 and MIL-STD-810H compliance. Compact 2.0-inch modules fit handheld controllers and can add extended temperature ranges for rugged machinery.

These industrial HMI / embedded display solutions cover both outdoor terminals and factory floor controls. Across all sizes, rugged, high-brightness tft modules deliver comparable optical performance. However, industrial-grade tft modules require verified long-term availability. Leading tft display manufacturers offer five-year supply guarantees and 6–12 month end-of-life notices. If a standard size does not fit your enclosure, request a Custom TFT LCD Display with your exact mechanical and electrical specification. For outdoor industrial use, choose a display module with wide-temperature LCD, high-brightness backlight, and optical bonding. The display module tft lcd supplier should provide full test reports before trial production. A display module with 1,000 nits and bonded glass will outperform a cheaper panel in the field.

Leading Display Module TFT LCD Manufacturers to Watch

Global Industrial TFT LCD Manufacturers and Their Strengths

Several established display module manufacturers rank among the leaders, each offering display modules with extended lifecycles. Warranty terms, RMA processes, spare-panel availability, and failure analysis separate excellent display module manufacturers from average ones. These top tft display suppliers add pin-to-pin alternatives.

Certifications further distinguish display module tft lcd manufacturers. Standards such as IEC 61000, IP65–IP69K, and MIL-STD-810H demonstrate verified quality and environmental ruggedness. Request quality records, optical inspection, and aging test reports. Full Color TFT LCD Displays carry 16.7 million colors, so a single field failure halts production. Your display module tft lcd choice affects serviceability for a decade.

Global distribution defines practical reliability. Export documents, shipment tracking, and dual-source plans matter. Asian factories dominate TFT-LCD capacity, so container delays can disrupt schedules. Compare promised versus actual lead times across three orders; find tft display manufacturers that deliver. The best tft display manufacturers disclose forecast flexibility. Most tft lcd panels need durable backlights; choose a display module that weathers freight delays.

China-Based Custom Display Module TFT LCD Solutions

Leading China-based display module manufacturers support custom industrial projects. They serve automotive, medical, white-goods, and embedded applications. Request custom sizes, FPC and connector options, touch integration, brightness tuning, and optical bonding. All custom tft lcd products start from tailored specifications rather than modified stock panels. An IPS TFT LCD Display Module from this team fits demanding HMI systems.

Support spans one prototype sample through mass production. Sample MOQ options and short lead times keep development moving. A robust display module survives shock and vibration; the tft lcd you select needs an extended-temperature polarizer. Every lcd display manufacturer should provide full test reports before trial production.

Global sourcing includes regional warehousing and stocked display module inventories for quick-turn orders. When you order a Custom TFT LCD Display, verify IEC 61000 and MIL-STD-810H test reports independently. Partnerships also extend into Southeast Asia and the Middle East, shortening lead times. For 2026, high-quality OEM manufacturing, improved performance, and rugged design lead the market.

The 7.0-inch high-brightness IPS TFT LCD Display Module (1000 nits) and the optically bonded 10.1-inch factory-automation touch panel define exceptional tft display modules for industrial applications in 2026. Evaluate brightness, temperature range, durability, optical bonding, certifications, long-term availability, and supplier reliability before you commit to a design.

Leading China-based display module tft lcd manufacturers support custom projects. Their engineers deliver comprehensive engineering support, global sourcing, and dependable lifecycle management. Full Color TFT LCD Displays from these partners satisfy demanding HMI applications.

Contact a qualified display module manufacturer today. Request a quote for a Custom TFT LCD Display, discuss customization options, or ask for engineering guidance.

FAQ

How long do display modules stay in production?

Leading display module manufacturers provide 5-year supply guarantees. They offer 6–12 month end-of-life notices. Consumer panels may change without warning. An IPS TFT LCD Display Module fits this profile. Match the module lifecycle to your product's service life.

Is optical bonding worth the extra cost?

Yes for outdoor environments. Bonding cuts internal reflections 60–70%. It boosts contrast 30–40%. Bonded modules offer improved shock and vibration resistance per IEC 60068 and MIL-STD-810H.

What brightness do you need for outdoor HMIs?

Direct sunlight requires 1,000 nits minimum. Industrial HMI displays need 800–1,000 nits. Indoor office use needs only 200–350 nits. Full Color TFT LCD Displays deliver 16.7 million colors. Brightness determines readability. Match the display module brightness to actual ambient illumination.

Which certifications should you demand from suppliers?

IEC 61000 covers EMC immunity for industrial sites. MIL-STD-810H validates environmental stress performance. IP65–IP69K rates sealing against dust and water. Request test reports from tft display manufacturers before your display module goes to production.

How do you choose a reliable display module tft lcd manufacturer?

Evaluate certifications, test evidence, lead times, availability. Compare promised versus actual delivery across three orders. Ask for optical inspection reports. Choose a partner offering a Custom TFT LCD Display, custom display module design, global sourcing.
