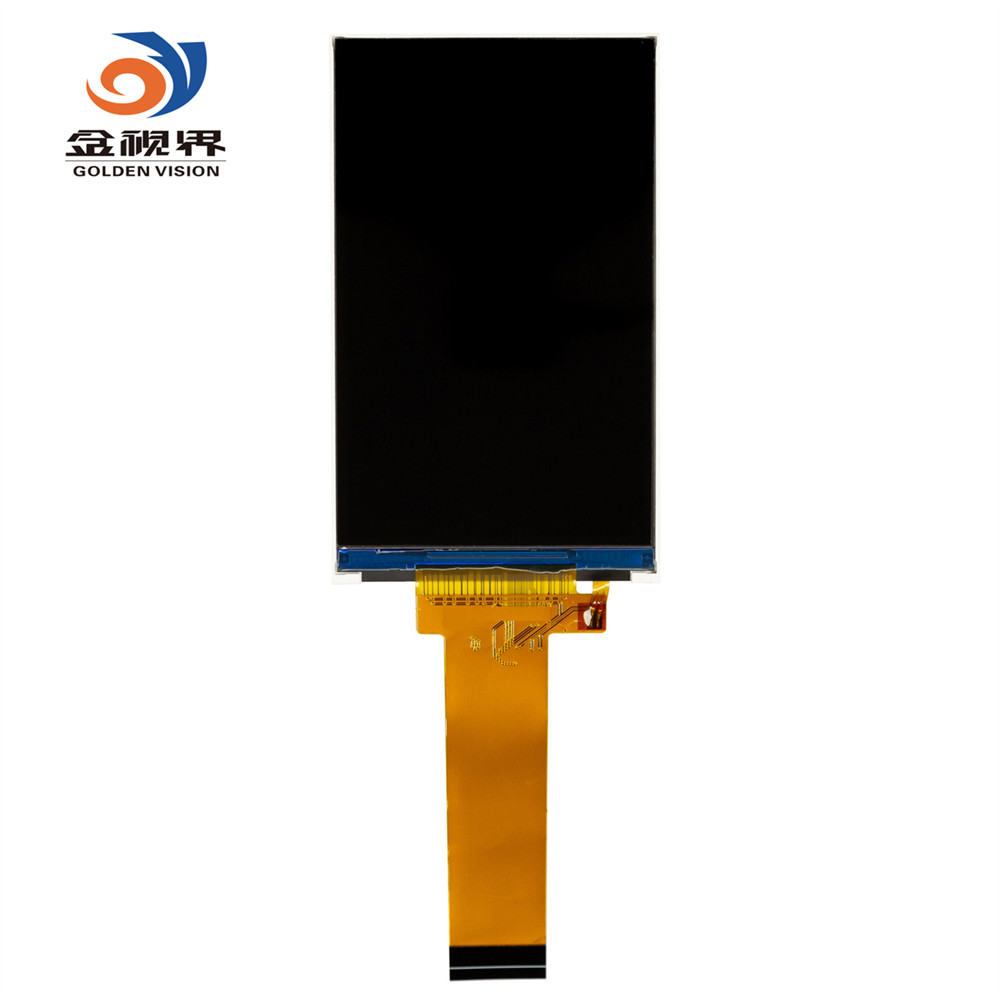

Golden Vision 3.97 Inch 480*800 IPS TFT LCD Display Module LCD Screen

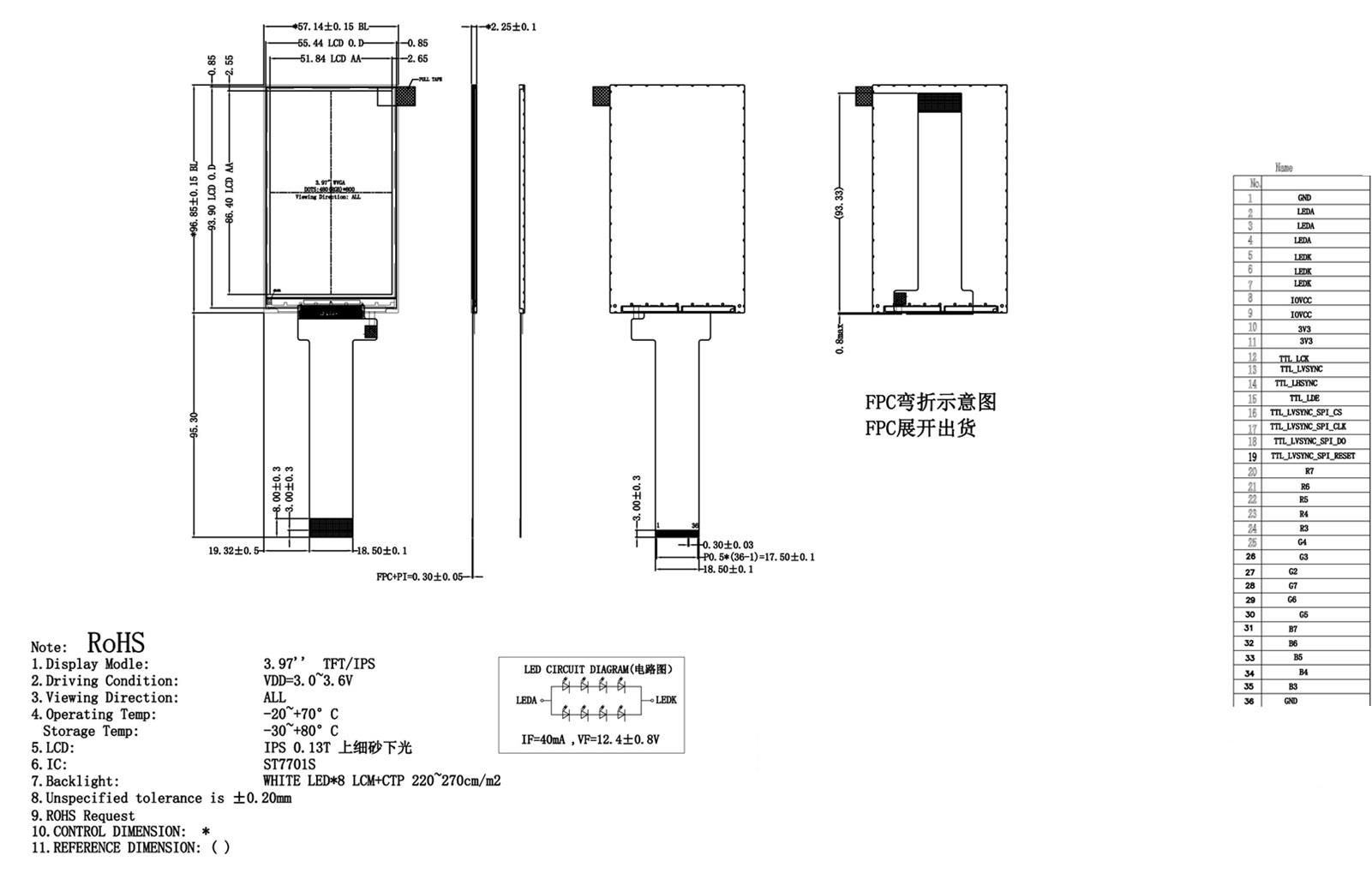

Part No: GVH0397WV20B

Panel Size: 3.97 inch

LCD Type: IPS

Module Size: 57.14X96.85 MM

Display Area: 51.84x86.4 MM

Number of Dots: 480x800

View angle: ALL

Driver IC: ST7701S

Interface Pins: 36 PIN RGB

LED Numbers: 8 LED

Luminance: 270

With or without TP: CTP



Inquiry now

Product Features:

  • It is a 3.97 inch transmissive type color active matrix liquid crystal display (LCD) module.
  • It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & resistive touch panel/demo board is available for your option.
  • It's standard and ready-made TFT LCD module.
  • Experienced Team for customized Solution.
  • Applicated for infusion, AEDs, sphygmomanometer, ventilator, TPMS, coffee machine, IP phone, charging pile...etc.
  • RoHS compliant.
Hot Tags : IPS TFT LCD Display Module 3.97 Inch LCD Screen IPS TFT LCD Display Matrix LCD Module 3.97 Inch Transmissive LCD Module
