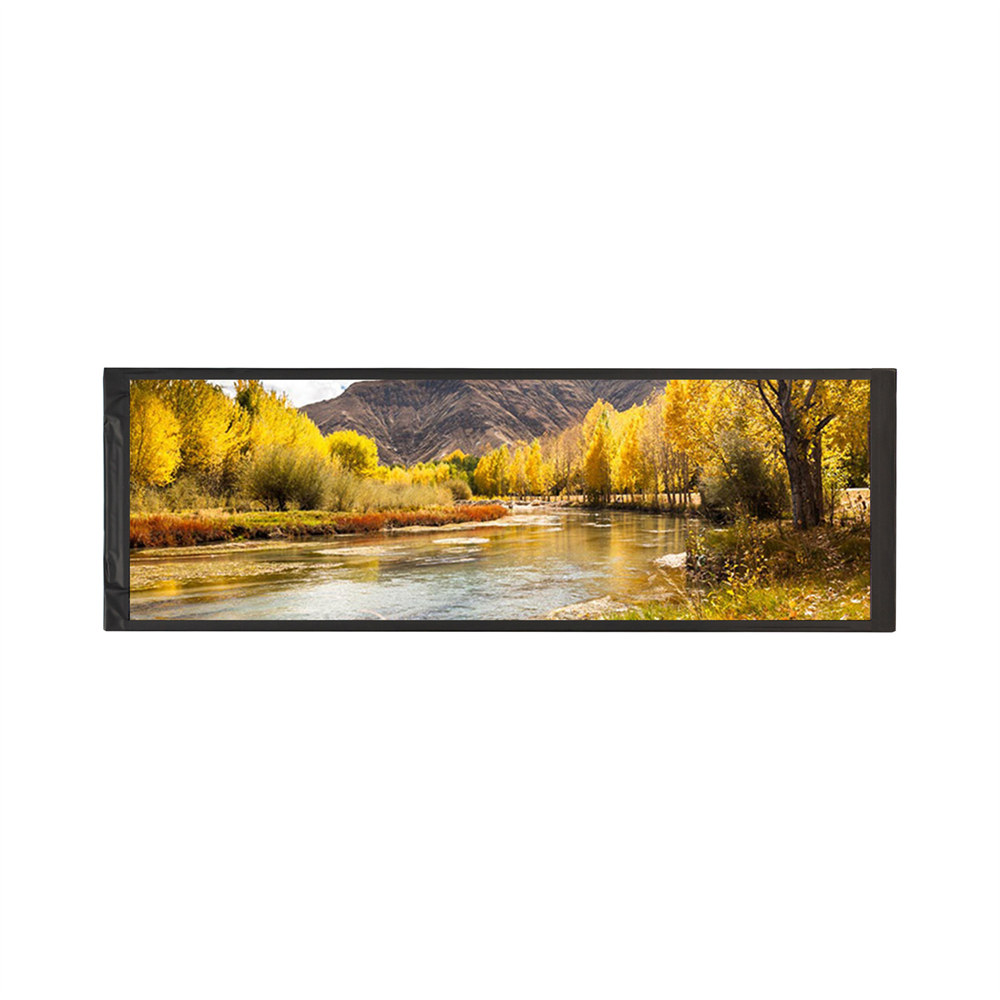

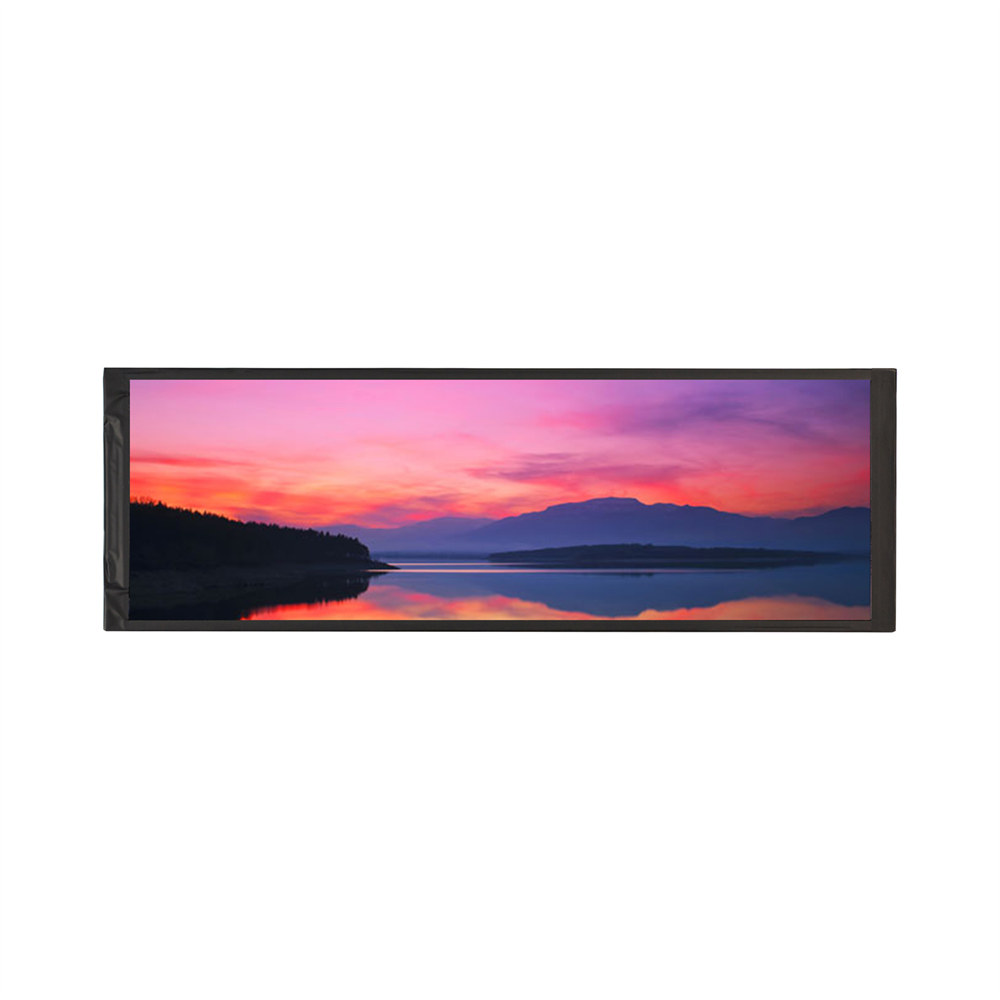

Golden Vision 7.80 Inch 400*1280 IPS TFT LCD Display Module LCD Screen

Part No: GVH0780FW02B

Panel Size: 7.8 Inch

LCD Type: IPS

Module Size: 205.78X67.8 MM

Display Area: 190.08X59.4 MM

Number of Dots: 400x1280

View angle: all

Driver IC: NV3051F1

Interface Pins: 40 pins RGB

LED Numbers: 12 LEDS

Luminance: 340cd/m2

With or without TP: CTP



Inquiry now

Product Features:

  • It is a 7.8 inch transmissive type color active matrix liquid crystal display (LCD) module.
  • It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & resistive touch panel/demo board is available for your option.
  • It's standard and ready-made TFT LCD module.
  • Experienced team for customized solution.
  • Applicated for infusion, AEDs, sphygmomanometer, ventilator, TPMS, coffee machine, IP phone, charging pile...etc.
  • RoHS compliant.
