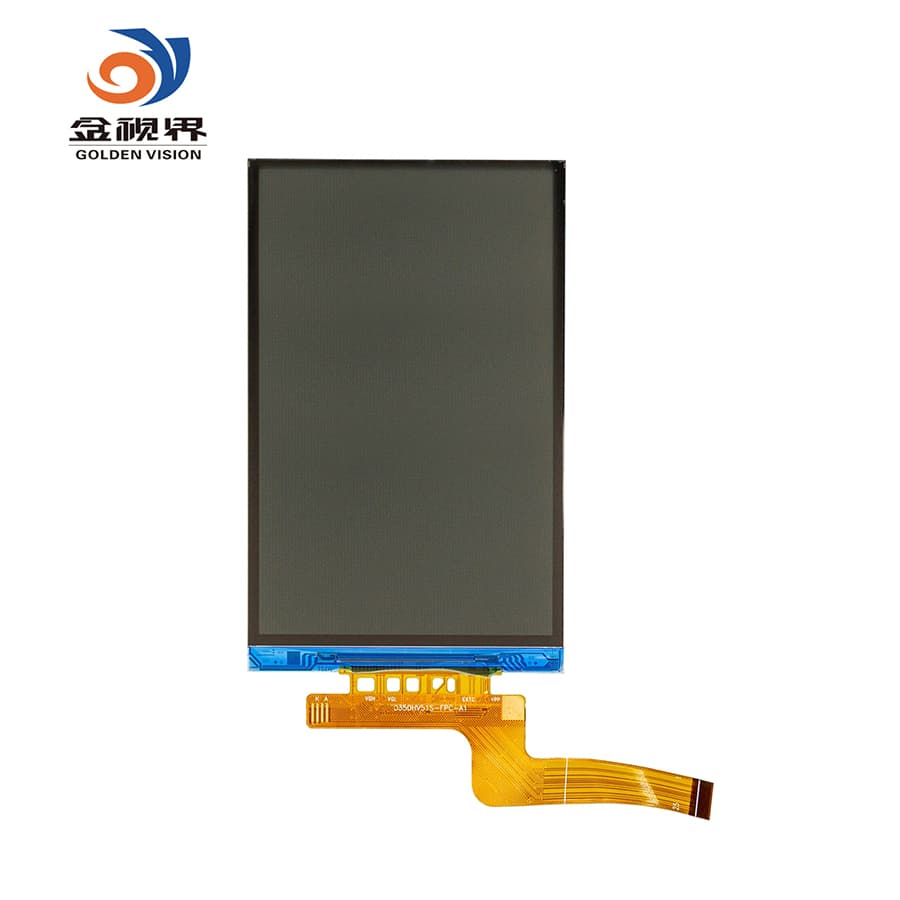

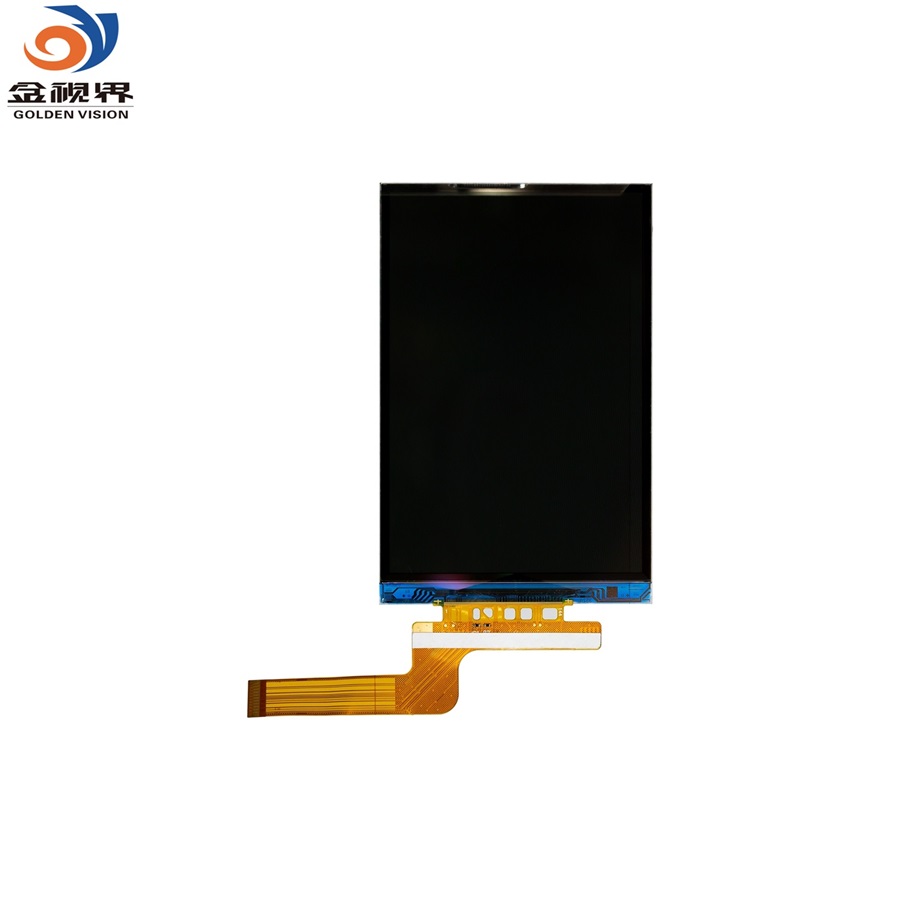

Golden Vision 3.5 Inch 320*480 IPS TFT LCD Display Module LCD Screen
Part No: GVH0350HV67B
Panel Size: 3.5 Inch
LCD Type: IPS

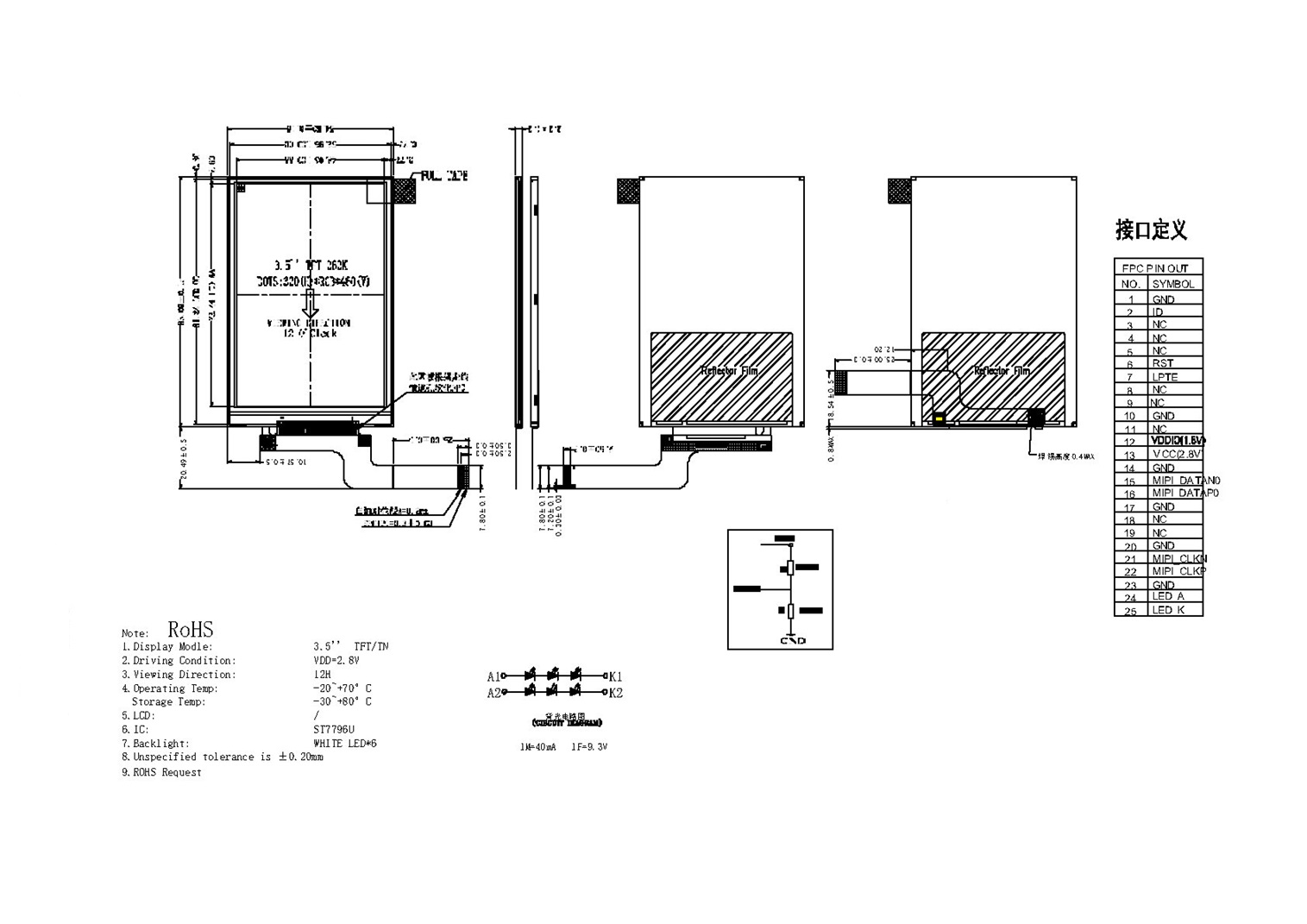

Module Size: 54.38X84.61 MM
Display Area: 48.96x73.44 MM
Number of Dots: 320x480
View angle: All
Driver IC: ST7796U
Interface Pins: 45 pin MCU
LED Numbers: 6 LEDS
Luminance: 300cd/m2
With or without TP: without
Product Features:
This is a 3.5-inch transmissive color active matrix liquid crystal display (LCD) module. It consists of a TFT LCD panel, driver IC, FPC, and backlight unit. The backlight brightness can be customized according to your requirements. Options for capacitive and resistive touch panels, as well as demo boards, are available. This is a standard, ready-made TFT LCD module backed by an experienced team for customized solutions. It is suitable for applications in infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, charging piles, and more. The module is RoHS compliant.
