Golden Vision Mono LCD Display 256*80 FSTN/Positive/Transmissive LCD Module

1. Part No: GVH12864266-FKFW 2. Display mode: FSTN/Positive 3. Driving condition: 1/64 duty, 1/9 bias, VDD=3V, VLCD=8.5V 4. Module Size: 42x36 MM 5. Display Area: 35.81x24.29 MM 6. Number of Dots: 128x64 7. View angle: 6:00 o'clock 8. Driver IC: ST7567A 9. Interface Pins: 7 PINS 4 line SPI 10. Operating Temp: -20~70 11. Storage Temp: -30~80 12. LCD connector: COG+FPC+Backlight 13. Backlight: White LED*2, VF=3.0V, IF=30mA

Part No: GVH001089-FKFW Display mode: FSTN/Positive/Transmissive Driving condition: 1/9 duty, 1/4 bias, VDD=3V, VLCD=5.6V Module Size: 36x43.5 MM Display Area: 32x36 MM Number of Dots: Segment View angle: 6:00 o'clock Driver IC: AIP31567A Interface Pins: 10 PINS SPI Operating Temp: -10~50 Storage Temp: -20~60 LCD connector: COG+FPC+Backlight Backlight: White LED*2, VF=3.0V, IF=30mA

Part No: GVH000856-FKFW Display mode: FSTN/Positive/Transmissive Driving condition: 1/4 duty, 1/3 bias, VDD=3V Module Size: 45.83x34 MM Display Area: 35.1x10.965 MM Number of Dots: Segment View angle: 6:00 o'clock Operating Temp: -10~60 Storage Temp: -20~70 LCD connector: FPC Backlight: White LED*2, VF=3.0V, IF=30mA

Part No: GVH25664101-WKBW Display mode: DFSTN/NEGATIVE/TRANSMISSIVE Driving condition: 1/64 Duty, 1/9 Bias, VDD=3.0V, VLCD=9.0±0.2V Module Size: 88.15x33.15 MM Display Area: 79.34x19.82 MM Number of Dots: 256x64 View angle: 6:00 o'clock Driver IC: ST75256 Interface Pins: 14 pin SPI Operating Temp: -30~+80°C Storage Temp: -40+90°C LCD connector: COG+FPC Backlight: white LED*5, VF=3V, IF=75MA

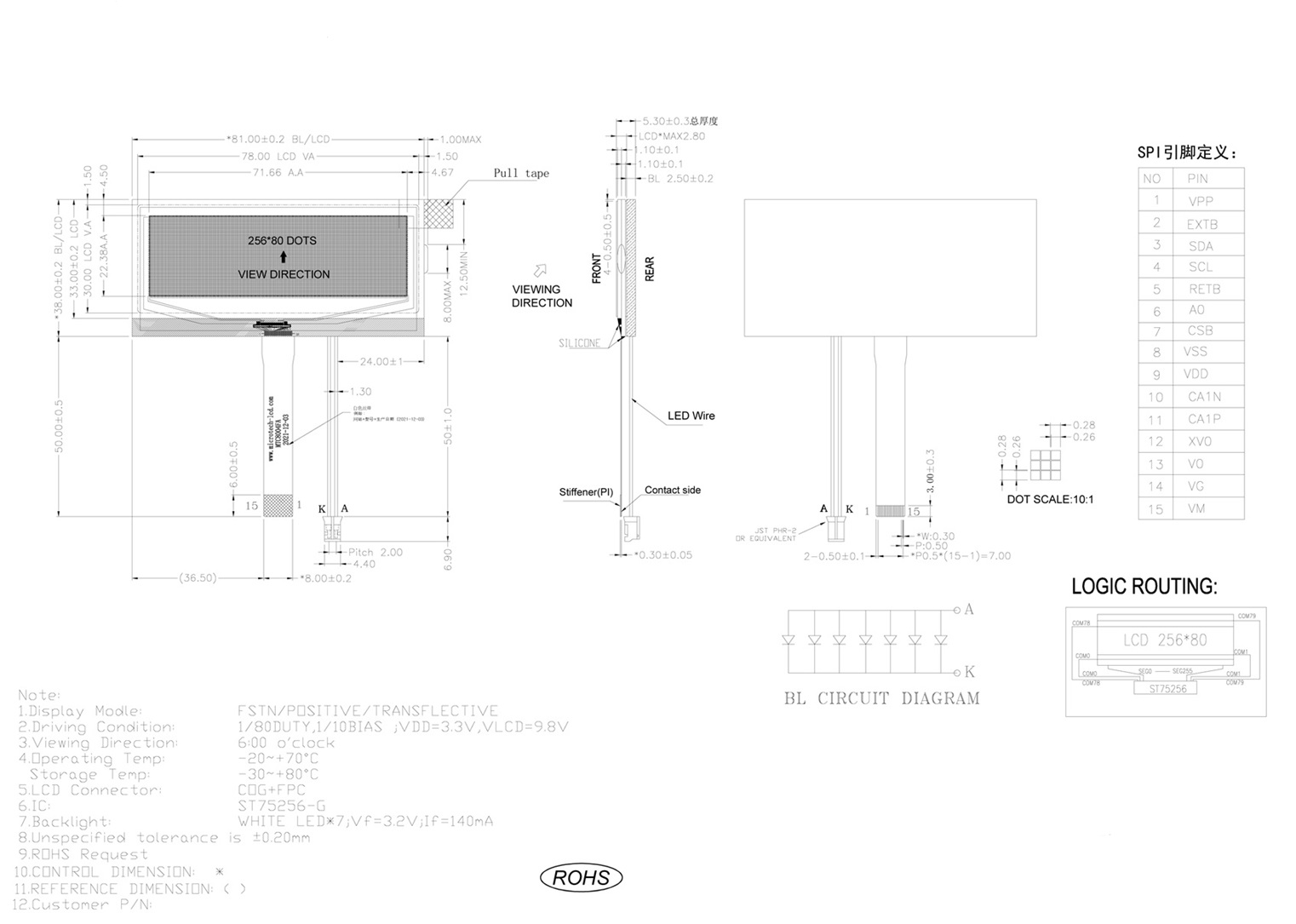

Part No: GVH25680101-FGFW Display mode: FSTN/Positive/Transflective Driving condition: 1/80 duty, 1/10 bias, VDD=3.3V, VLCD=9.8V Module Size: 81x38 MM Display Area: 71.66x22.38 MM Number of Dots: 256x80 View angle: 6:00 o'clock Driver IC: ST75256-G Interface Pins: 15 pins SPI Operating Temp: -20~70 Storage Temp: -30~80 LCD connector: COG+FPC Backlight: white LED*7, VF=3.2V, IF=140MA

Part No: GVH100100101-FDFW Display mode: FSTN/Positive/Transflective Driving condition: 1/100 duty, 1/9 bias, vdd= 3.0V, VLCD=11V Module Size: 38.1x43.1 MM Display Area: 29.98x29.98 MM Number of Dots: 100x100 View angle: 12:00 o'clock Driver IC: ST7571 Interface Pins: 19 pin SPI Operating Temp: -20~70 Storage Temp: -30~80 LCD connecto: COG+BL Backlight: white LED*3, VF=3V, IF=45MA with or without TP: with RTP

Part No: GVH25696101-FGFW Display mode: FSTN/POSITIVE/TRANSFLECTIVE Driving condition: 1/128 DUTY, 1/12 BIAS, VDD=3.3V, VLCD=14.9V Module Size: 187x76.3 MM Display Area: 176.62x59.5 MM Number of Dots: 256x96 View angle: 6:00 o'clock Driver IC: ST75256 Interface Pins: 22 pins SPI Operating Temp: -20~70 Storage Temp: -30~80 LCD connector: COG+FPC Backlight: white LED*16, VF=3.0V, IF=240mA
