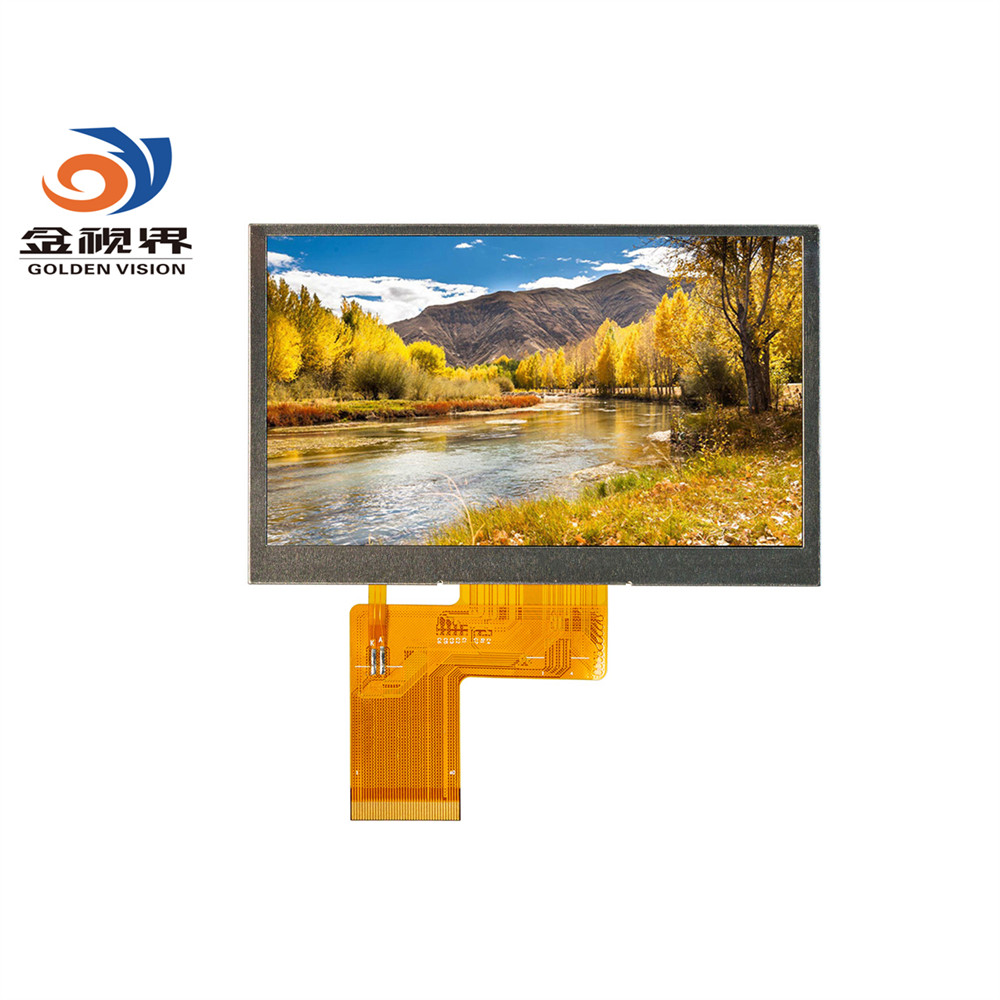

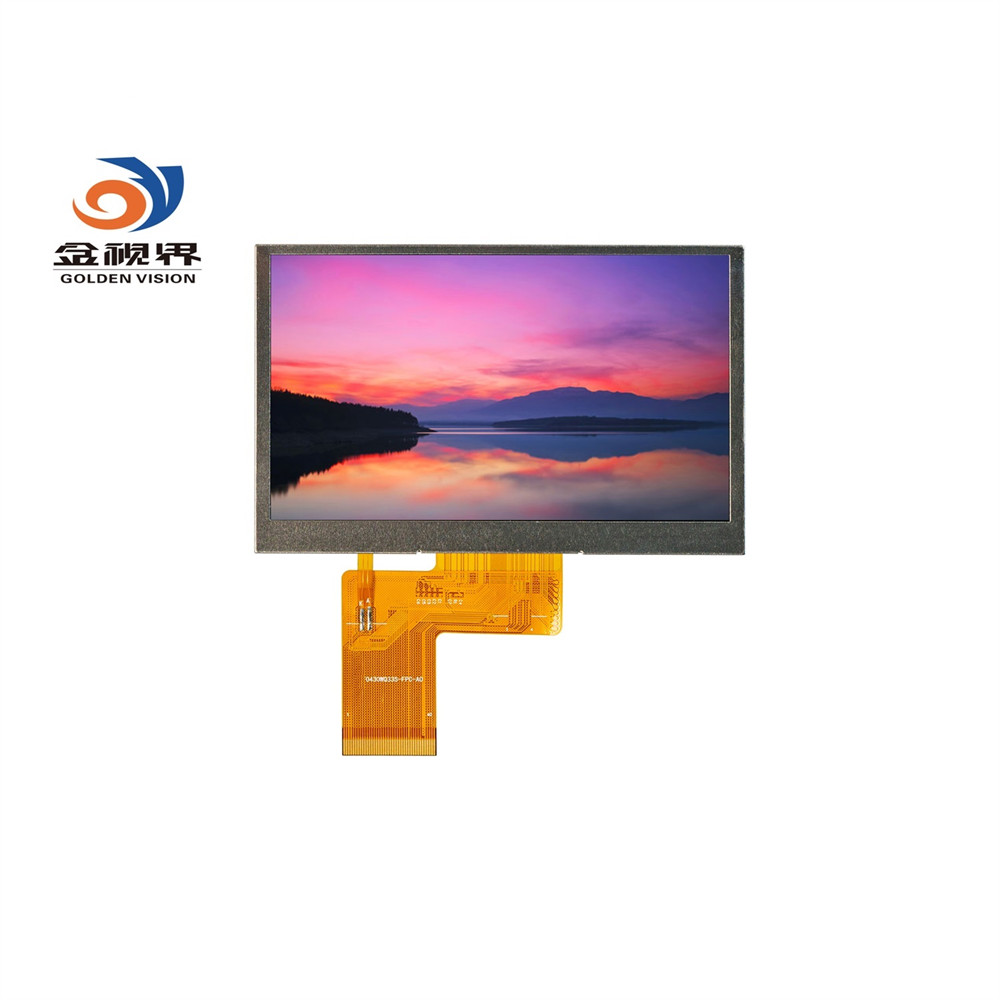

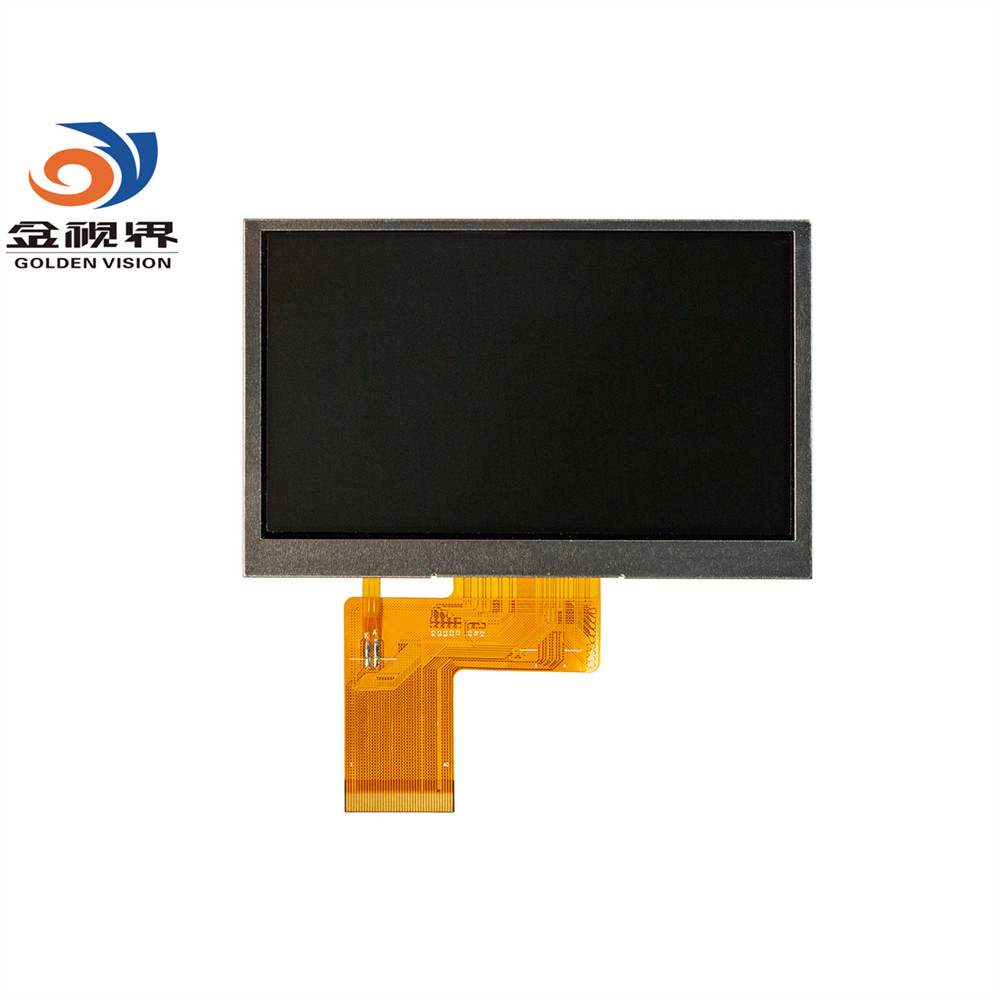

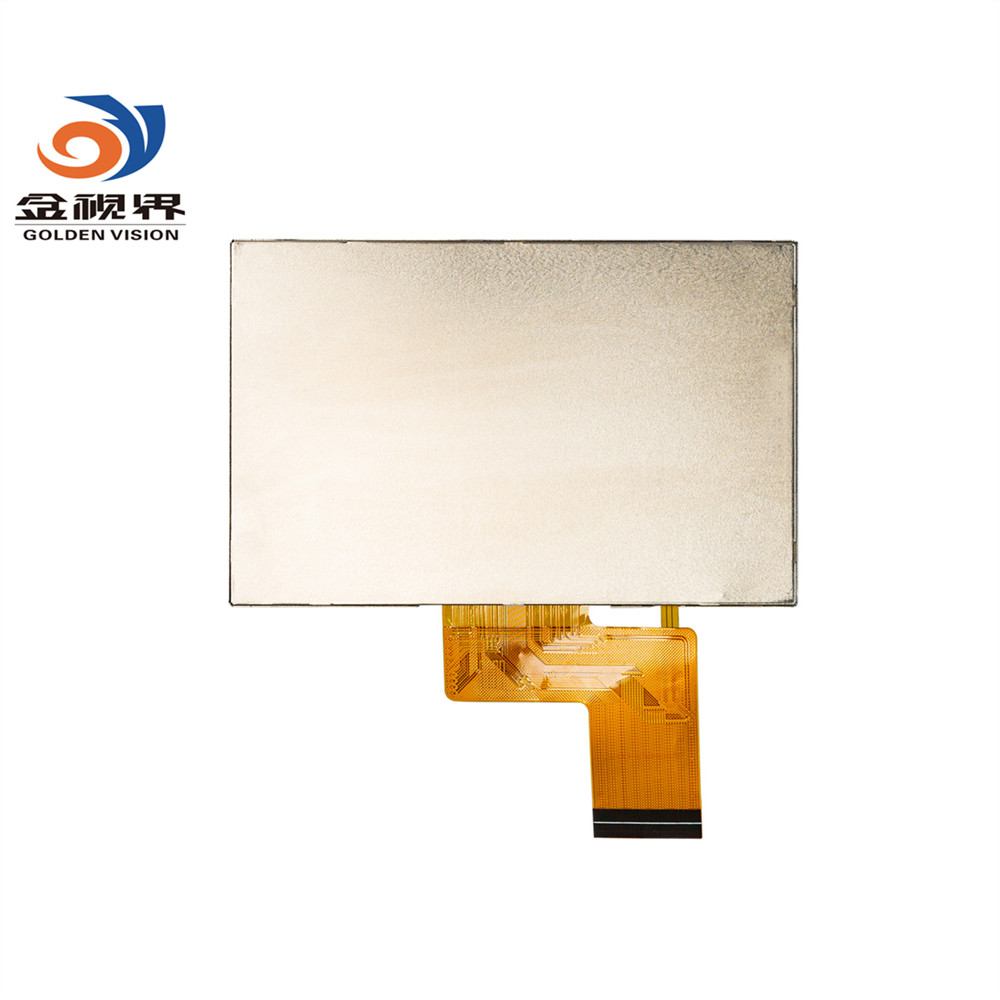

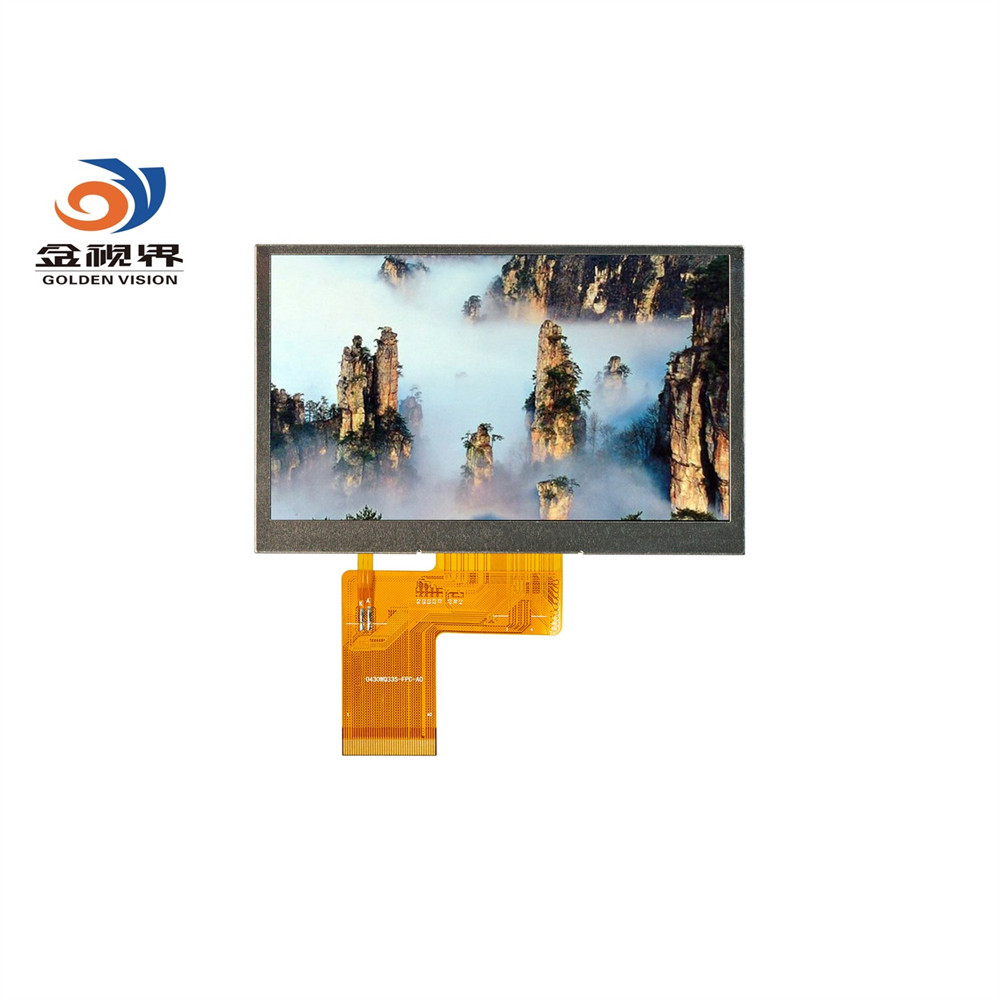

Golden Vision 4.3 Inch 480*272 IPS TFT LCD Display Module LCD Screen
Part No: GVH0430WQ35S
Panel Size: 4.3 inch
LCD Type: IPS
Module Size: 105.5X67.2 MM
Display Area: 95.04X53.86 MM
Number of Dots: 480x272
View angle: 6:00
Driver IC: ST7282
Interface Pins: 40 pin RGB
LED Numbers: 7 LED
Luminance: 330cd/m2
With or without TP: RTP
Product Features:
This is a 4.3-inch transmissive color active matrix liquid crystal display (LCD) module. It includes a TFT LCD panel, driver IC, FPC, and backlight unit, with customizable brightness options to fit your requirements. You can choose from capacitive or resistive touch panel options, as well as demo boards. This standard, ready-made TFT LCD module is supported by our experienced team for tailored solutions. It is suitable for various applications, including infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, and charging piles, and is RoHS compliant.
