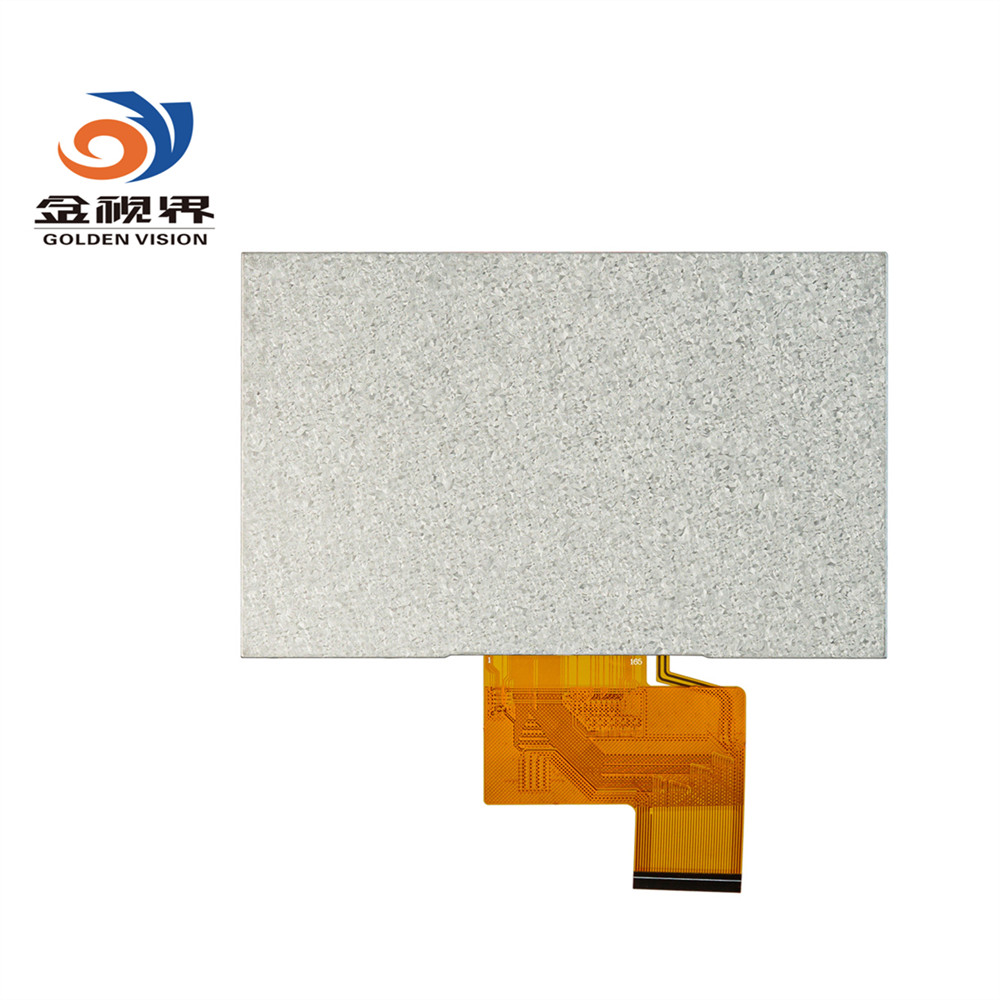

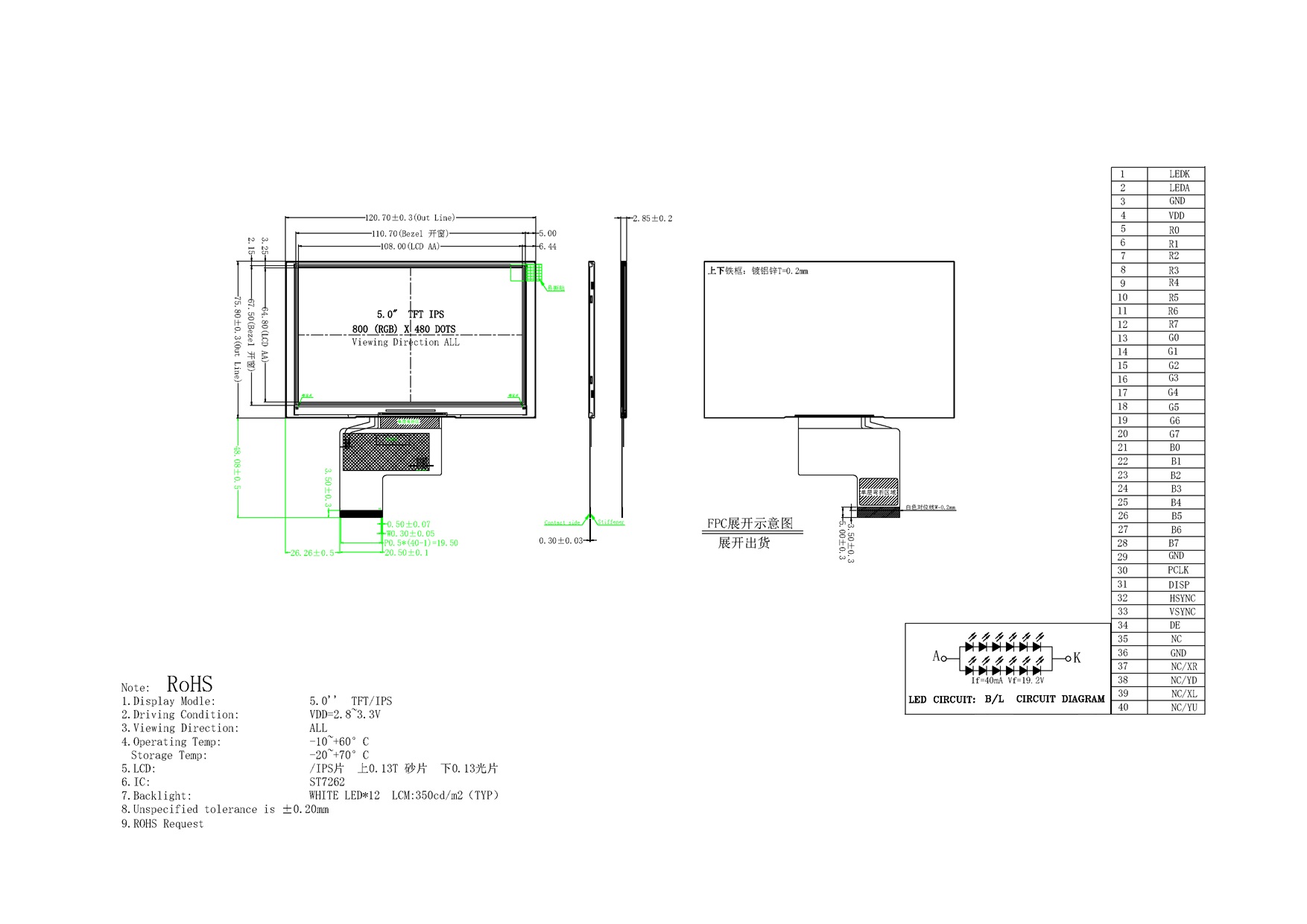

Golden Vision 5.0 Inch 800*480 IPS TFT LCD Display Module LCD Screen

Part No: GVH0500WV12S

Panel Size: 5 inch

LCD Type: IPS

Module Size: 120.7X75.8 MM

Display Area: 108X64.8 MM

Number of Dots: 800X480

View angle: ALL

Driver IC: ST7262

Interface Pins: 40 pins RGB

LED Numbers: 12 leds

Luminance: 300cd/m2

With or without TP: CTP



Inquiry now

Product Features:

  • It is a 5 inch transmissive type color active matrix liquid crystal display (LCD) module.
  • It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & resistive touch panel/demo board is available for your option.
  • It's standard and ready-made TFT LCD module.
  • Experienced team for customized solution.
  • Applicated for infusion, AEDs, sphygmomanometer, ventilator, TPMS, coffee machine, IP phone, charging pile...etc.
  • RoHS compliant.



Hot Tags : 5.0 Inch LCD Display Module TFT LCD Display Module 5.0 Inch TFT LCD Module Active Matrix LCD Display IPS TFT LCD Screen
leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
submit

Related Products

Industrial TFT LCD Display Modules

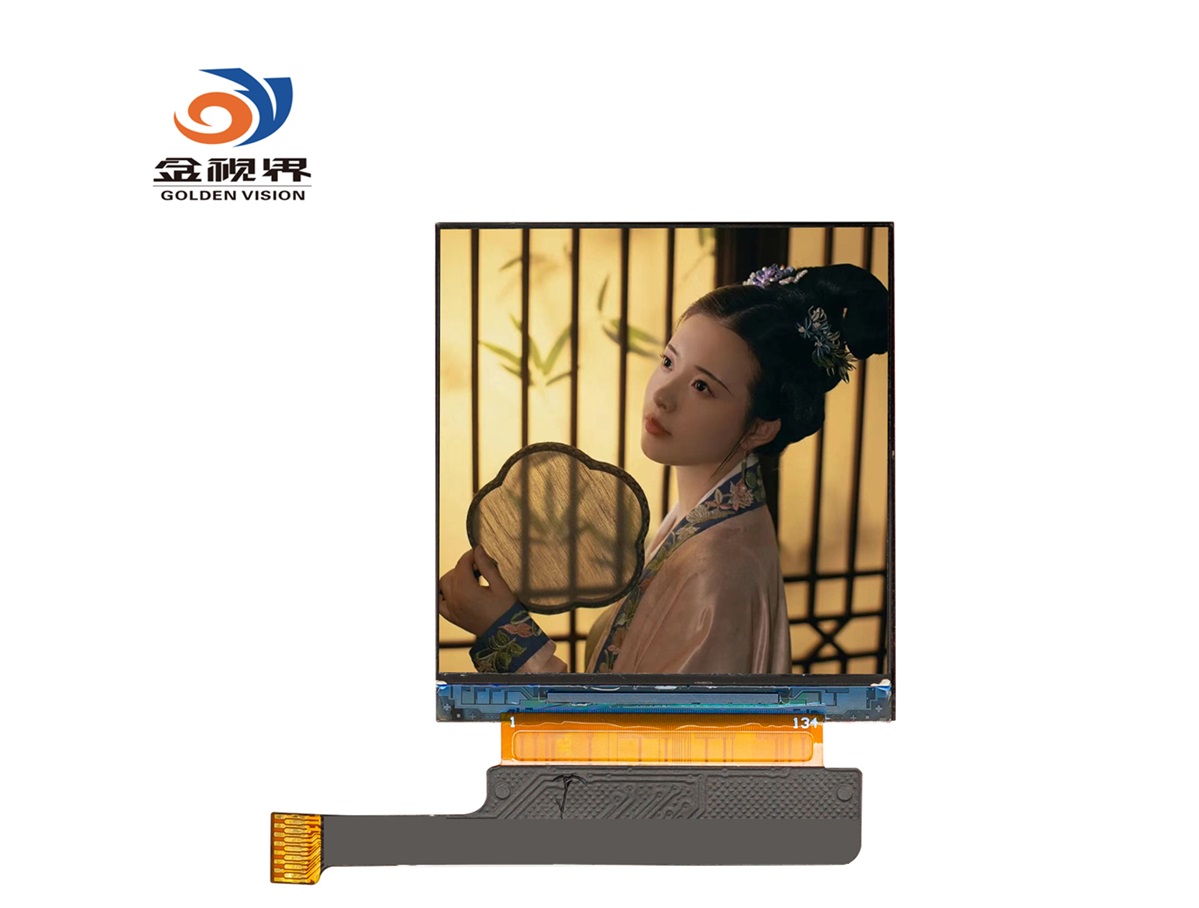

Golden Vision 1.54 Inch Square 240*240 IPS TFT LCD Display Module Screen
Part No: GVH0154Q08H Panel Size: 1.54 inch TFT LCD Type: IPS Module Size: 30.52X33.72 MM Display Area: 27.72X27.72 MM Number of Dots: 240X240 View angle: all Driver IC: ST7789V Interface Pins: 15 pin SPI LED Numbers: 3 leds Luminance: 330cd/m2 with or without TP: WITHOUT TP
More +
2.4 Inch TFT LCD Display Module

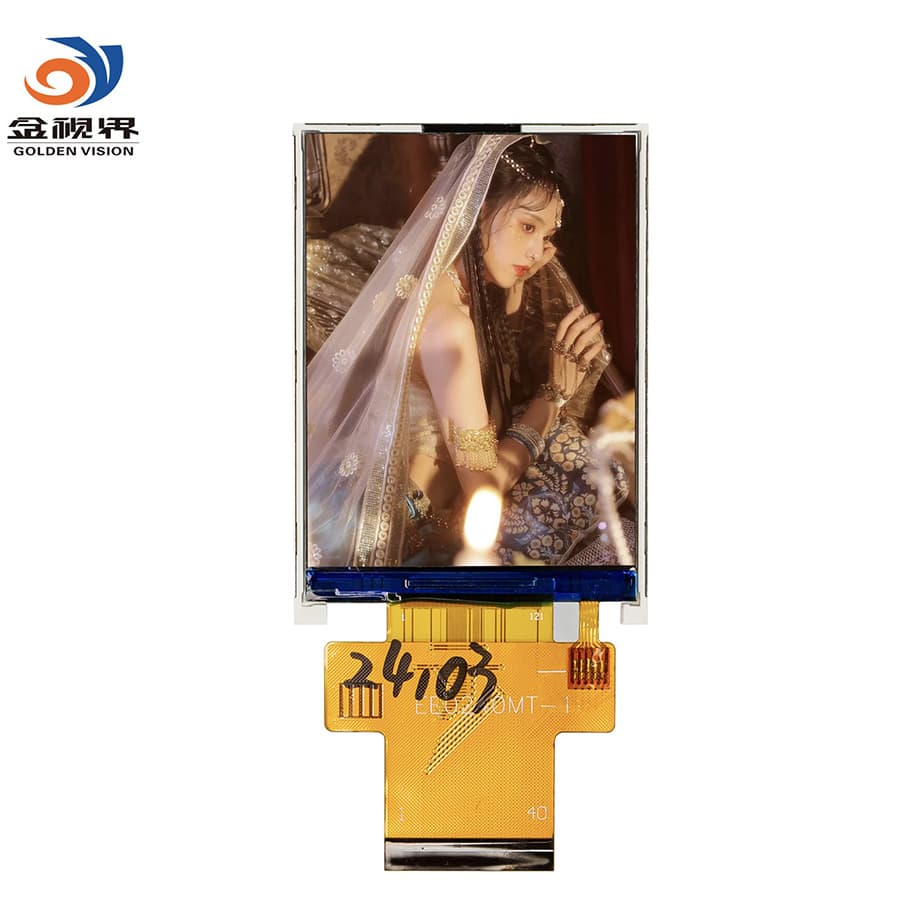

Golden Vision 2.4 Inch 240*320 IPS TFT LCD Display Module LCD Screen
Part No: GVH0240QV103B Panel Size: 2.4 inch TFT LCD Type: IPS Module Size: 42.32x59.89 MM Display Area: 36.72x48.96 MM Number of Dots: 240x320 View angle: All Driver IC: ST7789V2 Interface Pins: 40 PINS MCU LED Numbers: 4 LEDS Luminance: 300cd/m2 With or without TP: without
More +
2.8 inch IPS Full Color Touch TFT Display Module
Golden Vision 2.8 Inch 240*320 IPS TFT LCD Display Module LCD Screen
Part No: GVH0280QV21B Panel Size: 2.8 Inch LCD Type: IPS Module Size: 49.9x67.5 MM Display Area: 43.2x57.6 MM Number of Dots: 240x320 View angle: ALL Driver IC: ST7789V2-G4-A Interface Pins: 30 pins MCU LED Numbers: 4 LEDS Luminance: 250cd/m2 With or without TP: without
More +
TFT LCD Display Module
Golden Vision 5.5 Inch 1080*1920 IPS TFT LCD Display Module LCD Screen
Part No: GVH0550FH09Q Panel Size: 5.5 Inch LCD Type: IPS Module Size: 74.36x151.36 MM Display Area: 68.04x120.96 MM Number of Dots: 1080x1920 View angle: All Driver IC: HX8399C Interface Pins: 30 pins RGB LED Numbers: 14 LEDS Luminance: 310cd/m2 With or without TP: CTP
More +
TFT LCD Display Modules

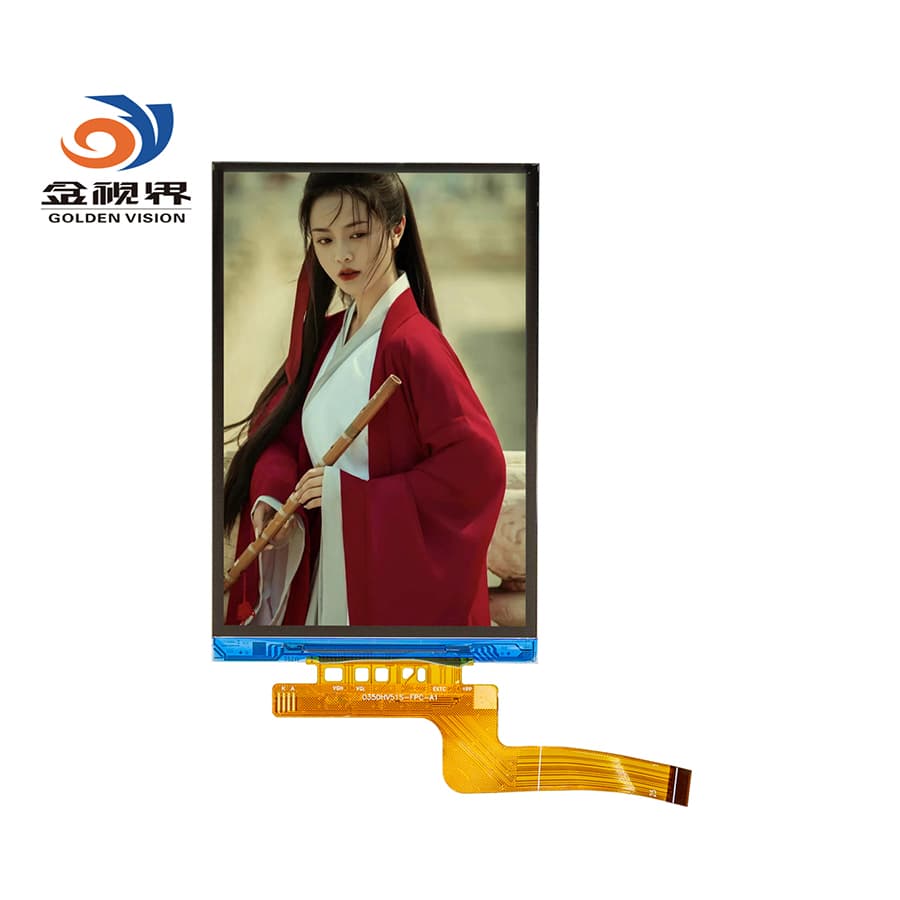

Golden Vision 3.5 Inch 320*480 IPS TFT LCD Display Module LCD Screen
