Golden Vision 4.3 Inch 480*272 IPS TFT LCD Display Module LCD Screen with PCBA

Home

TFT display module

Golden Vision 4.3 Inch 480*272 IPS TFT LCD Display Module LCD Screen with PCBA

4.3 Inch TFT LCD Display
Custom TFT LCD Display
4.3" LCD Display Module
4.3 Inch TFT LCD Display PCBA

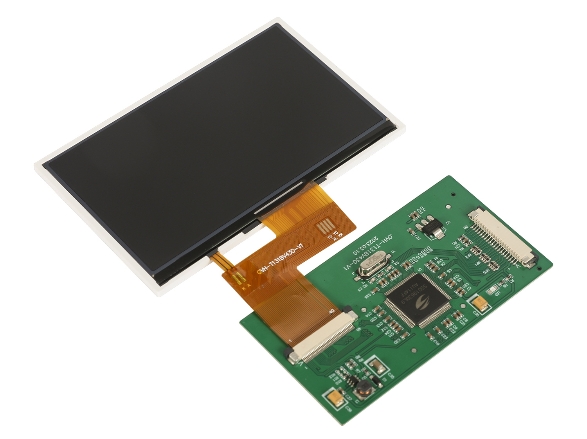

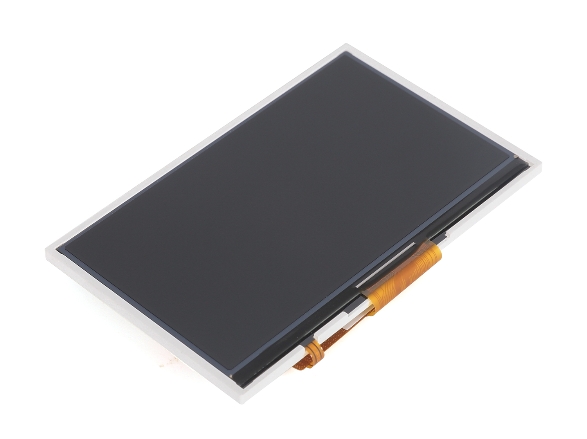

Golden Vision 4.3 Inch 480*272 IPS TFT LCD Display Module LCD Screen with PCBA

Part No: GVH-T131BV430-V1

Panel Size: 4.3 inch

LCD Type: IPS

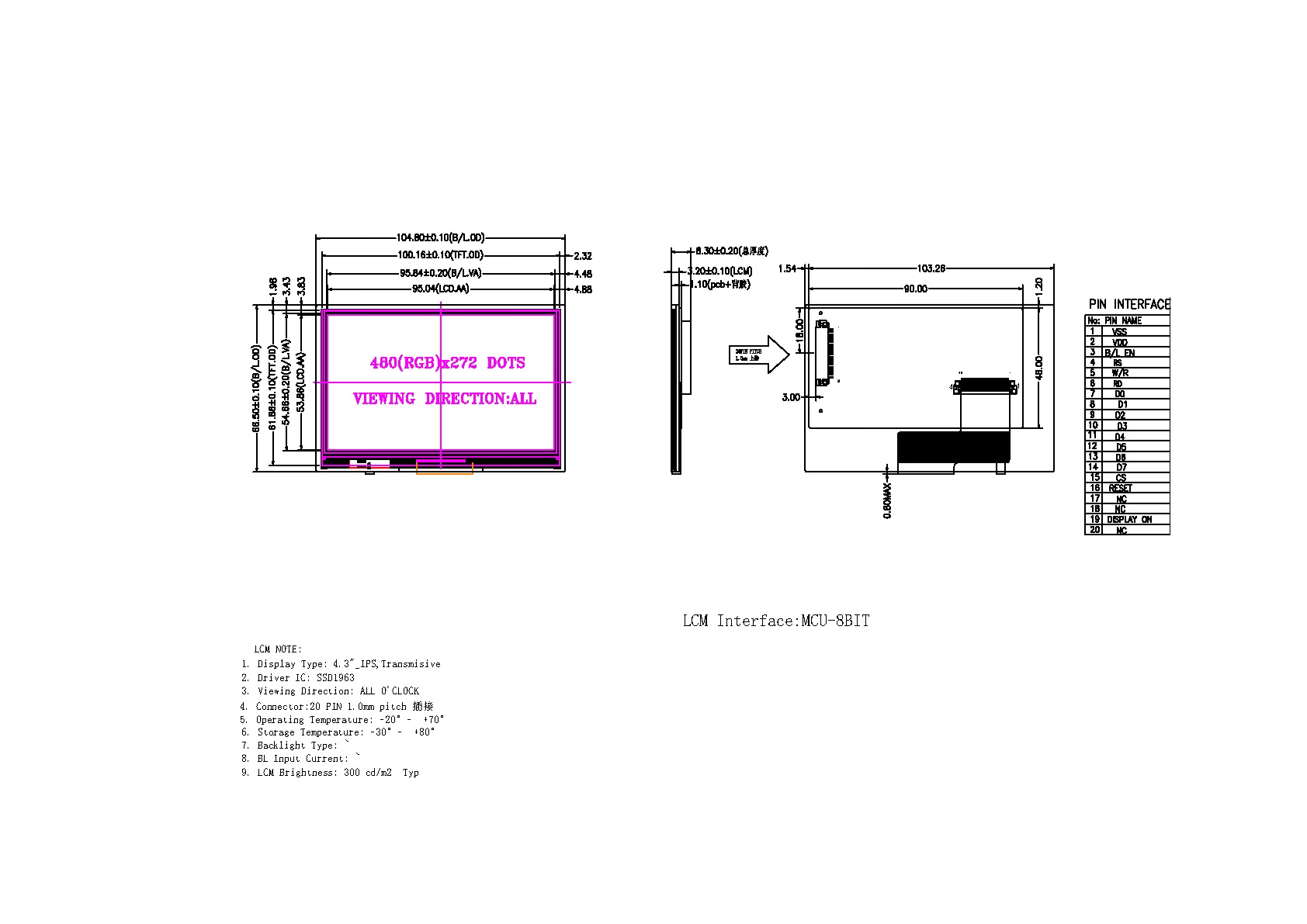

Module Size: 104.8x66.5x8.30 MM

Display Area: 95.04x53.86 MM

Number of Dots: 480x272

View angle: ALL

Driver IC: SSD1963

Interface Pins: 20 pin MCU

LED Numbers: 8 LED

Luminance: 300cd/m2

With or without TP: without



Inquiry now

Product Features:

  • It is a 4.3 inch transmissive type color active matrix liquid crystal display (LCD) module.

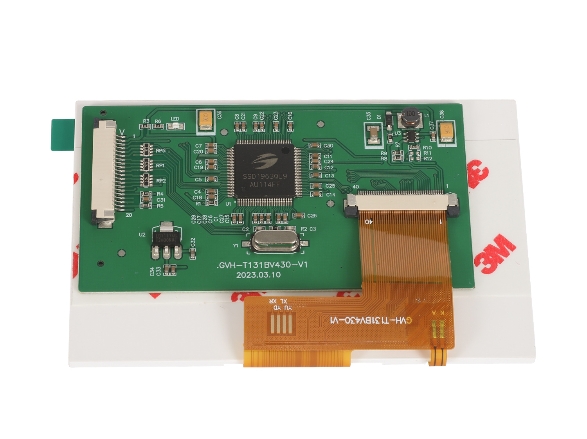

  • It is composed of a TFT LCD panel, driver IC, FPC, backlight unit and PCBA.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & Resistive touch panel/ Demo board is available for your option.
  • Experienced Team for customized Solution.
  • Applicated for Infusion, AEDs, Sphygmomanometer, Ventilator, TPMS, Coffee Machine, IP Phone, Charging Pile...etc.
  • RoHS compliant.
