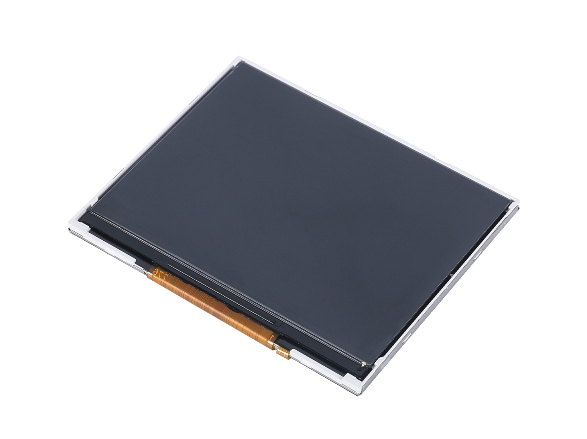

Golden Vision 3.5 Inch 640*480 IPS TFT LCD Display Module LCD Screen

Part No: GVH035WV36-A0

Panel Size: 3.5 Inch

LCD Type: IPS

Module Size: 76.9x63.85x2.85 MM

Display Area: 70.08x52.56 MM

Number of Dots: 640x480

View angle: ALL

Driver IC: NV3052C

Interface Pins: 54 pin RGB

LED Numbers: 6 LED

Luminance: 350cd/m2



Inquiry now

Product Features:

  • It is a 3.5 inch transmissive type color active matrix liquid crystal display (LCD) module.
  • It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & Resistive touch panel/ Demo board is available for your option.
  • Experienced Team for customized Solution.
  • Applicated for Infusion, AEDs, Sphygmomanometer, Ventilator, TPMS, Coffee Machine, IP Phone, Charging Pile...etc.
  • RoHS compliant.
Hot Tags : 3.5 Inch TFT LCD Display Custom TFT LCD Display IPS TFT LCD Module IPS TFT LCD Display Module 3.5" LCD Display Module
