Golden Vision 4.3 Inch 800*480 TFT LCD Display Module LCD Screen

Home

TFT display module

Golden Vision 4.3 Inch 800*480 TFT LCD Display Module LCD Screen

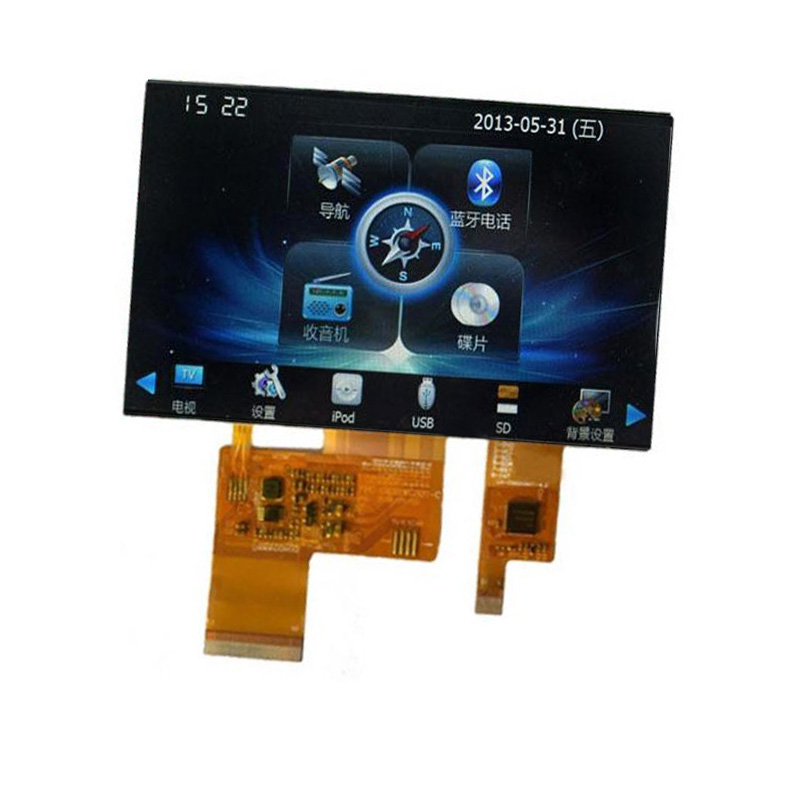

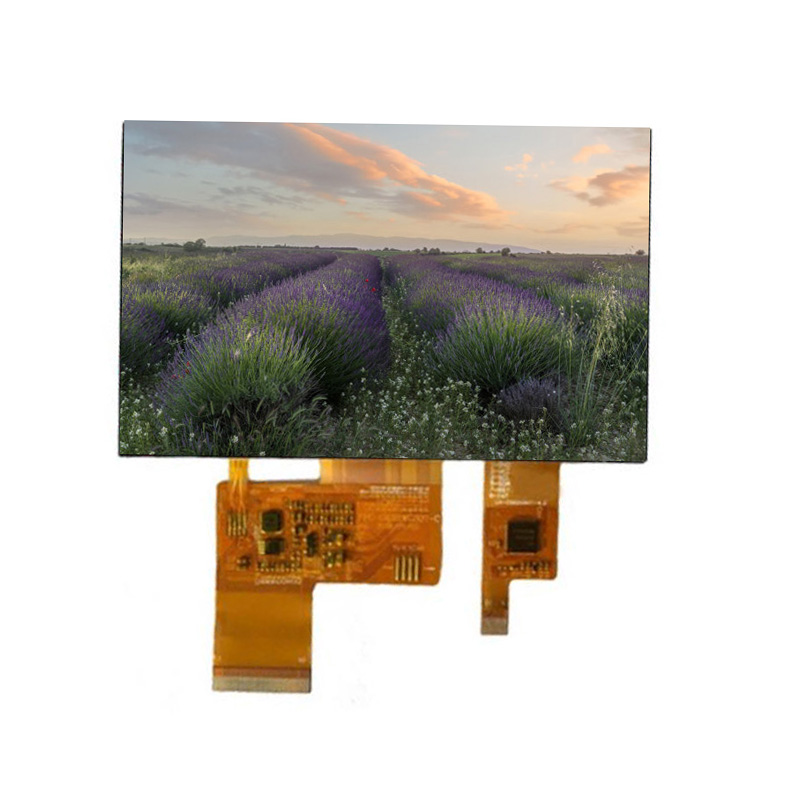

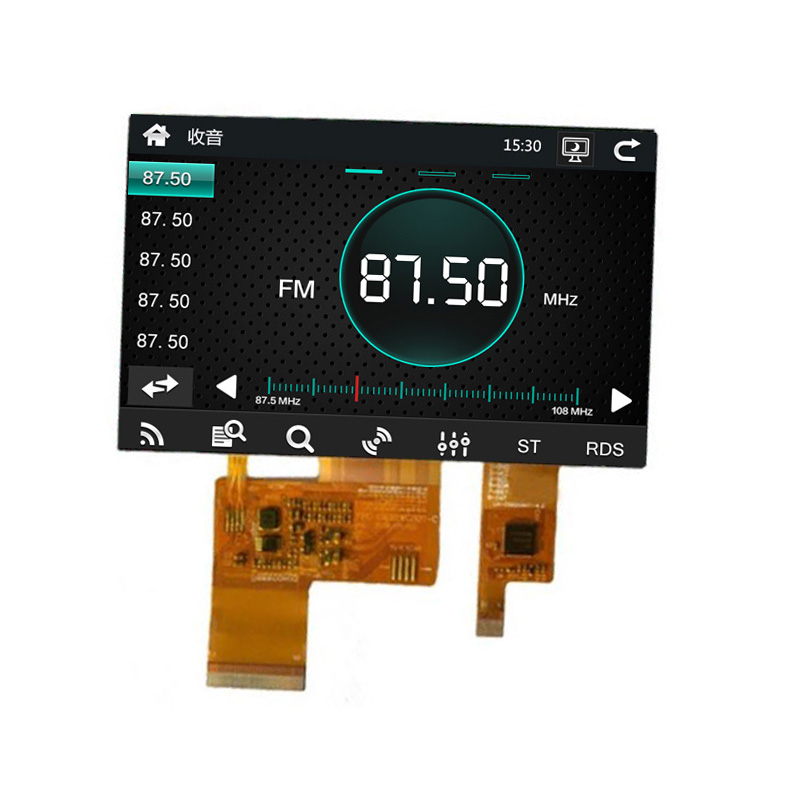

4.3 inch 800x480 touch screen
4.3 inch 800x480 touch screen
4.3 inch 800x480 touch screen
4.3 inch 800x480 touch screen

Golden Vision 4.3 Inch 800*480 TFT LCD Display Module LCD Screen

Part No: GVH0430

Panel Size: 4.3 Inch

LCD Type: IPS

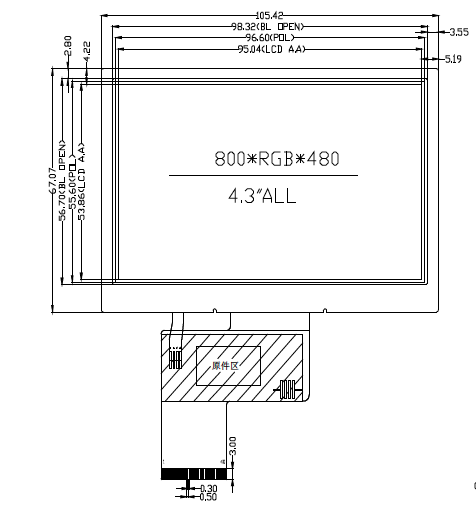

Module Size: 105.42x67.07 MM

Display Area: 95.04x53.86 MM

Number of Dots: 800x480

View angle: All

Driver IC: ST5625+ST5091

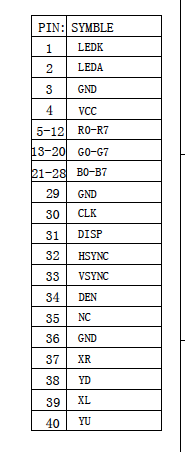

Interface Pins: 40 pin RGB

Luminance: 500cd/m2



Inquiry now

Product Features:

  • It is a 4.3 inch transmissive type color active matrix liquid crystal display (LCD) module.
  • It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & Resistive touch panel/ Demo board is available for your option.
  • Experienced Team for customized Solution.
  • Applicated for Infusion, AEDs, Sphygmomanometer, Ventilator, TPMS, Coffee Machine, IP Phone, Charging Pile...etc.
  • RoHS compliant.
Hot Tags : 4.3 Inch TFT LCD Display Custom TFT LCD Display IPS TFT LCD Module IPS TFT LCD Display Module 4.3 LCD Display Module
