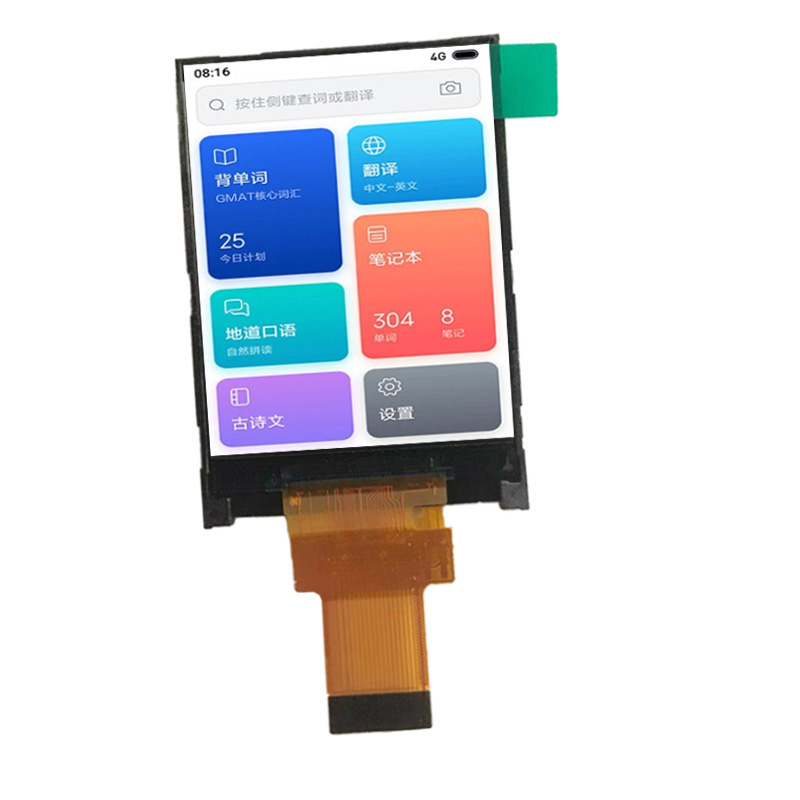

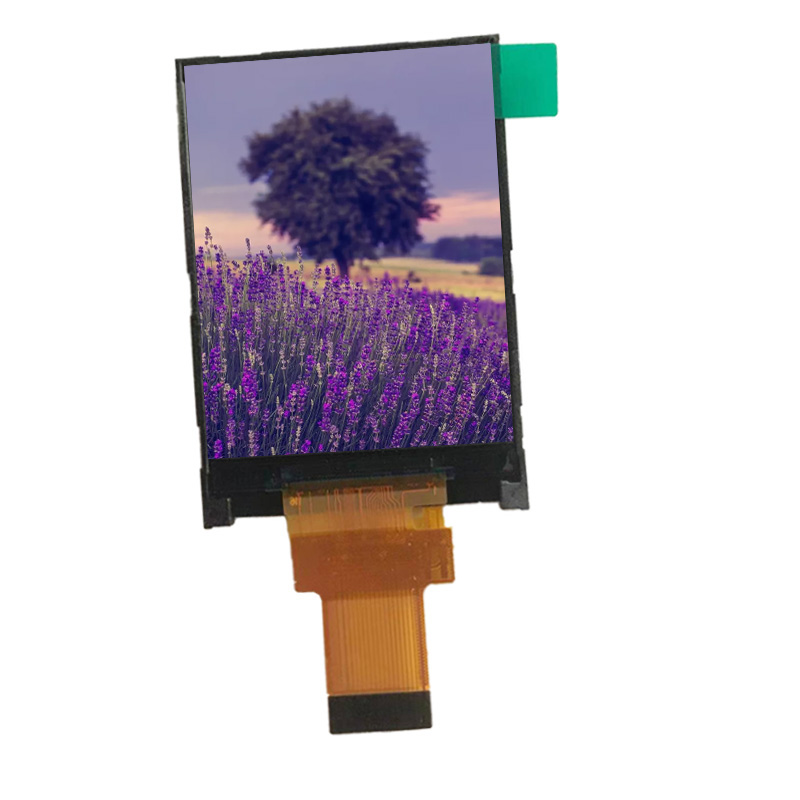

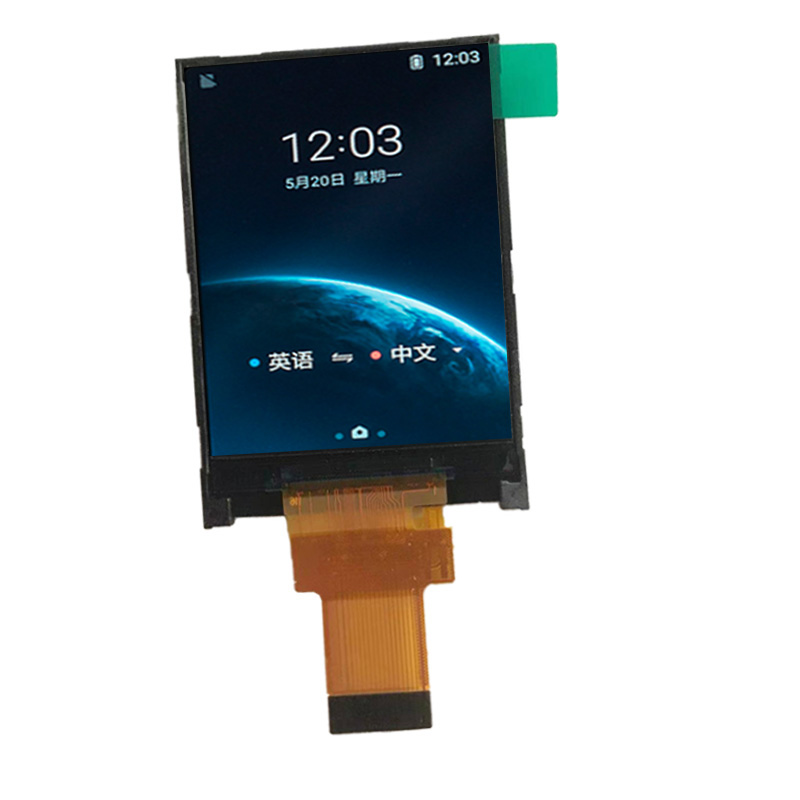

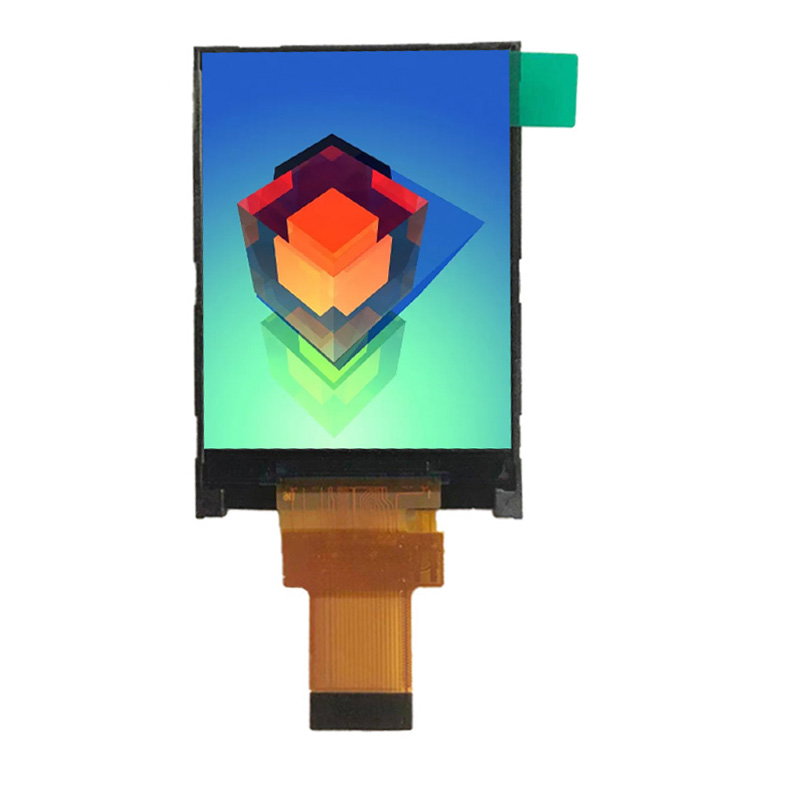

Golden Vision 2.0 Inch 240*320 TFT LCD Display Module LCD Screen

Golden Vision 2.0 Inch 240*320 TFT LCD Display Module LCD Screen

Part No: GVH0200

Panel Size: 2.0 Inch

LCD Type: IPS

Module Size: 36.05x51.8 MM

Display Area: 30.6x40.8 MM

Number of Dots: 240x320

View angle: All

Driver IC: ST7789

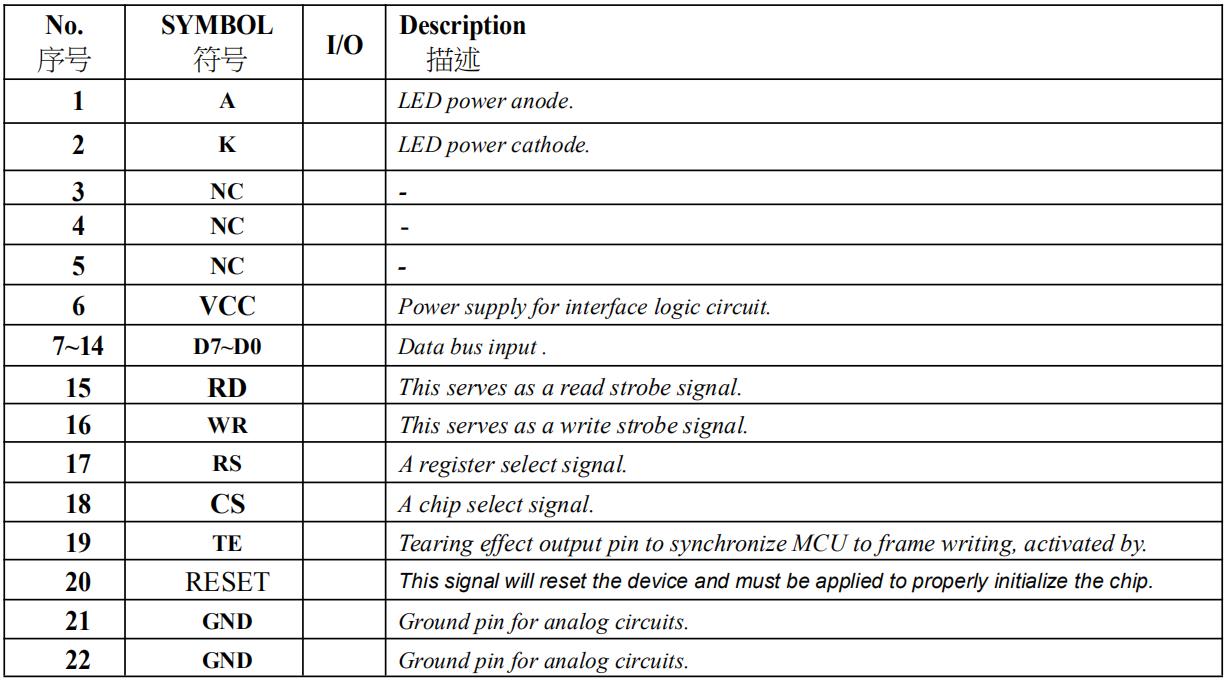

Interface Pins: 22 pin SPI/MCU

Luminance: 350cd/m2

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

This is a 2.0-inch transmissive color active matrix LCD module.
It features a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to meet your specific needs.
Optional capacitive and resistive touch panels, as well as demo boards, are available for selection.
Our experienced team offers customized solutions tailored to your requirements.
Ideal for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
RoHS compliant, adhering to environmental standards.

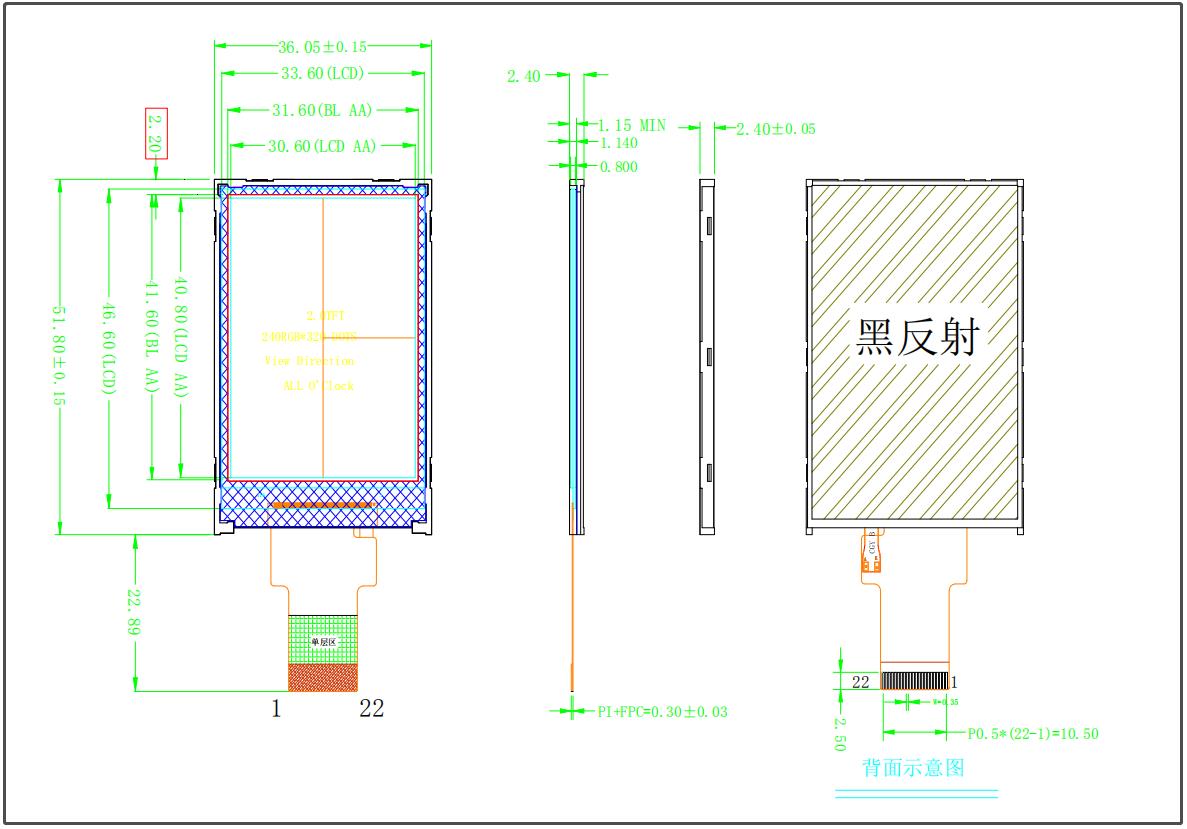

Product Drawing:
