Golden Vision 1.6 Inch 400*400 TFT LCD Display Module LCD Screen

Home

TFT display module

Golden Vision 1.6 Inch 400*400 TFT LCD Display Module LCD Screen

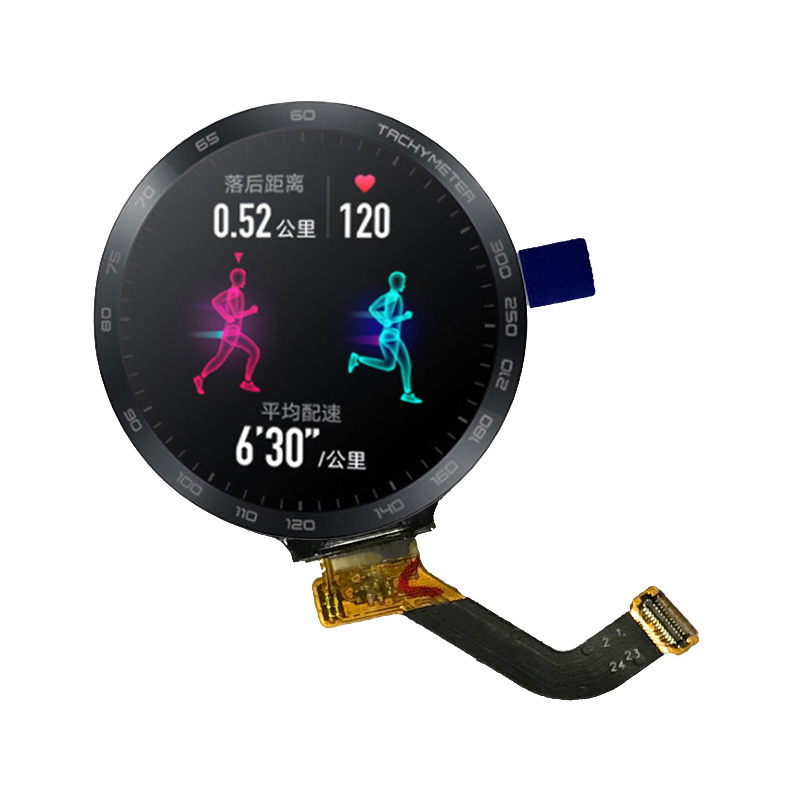

1.6 inch round TFT color screen

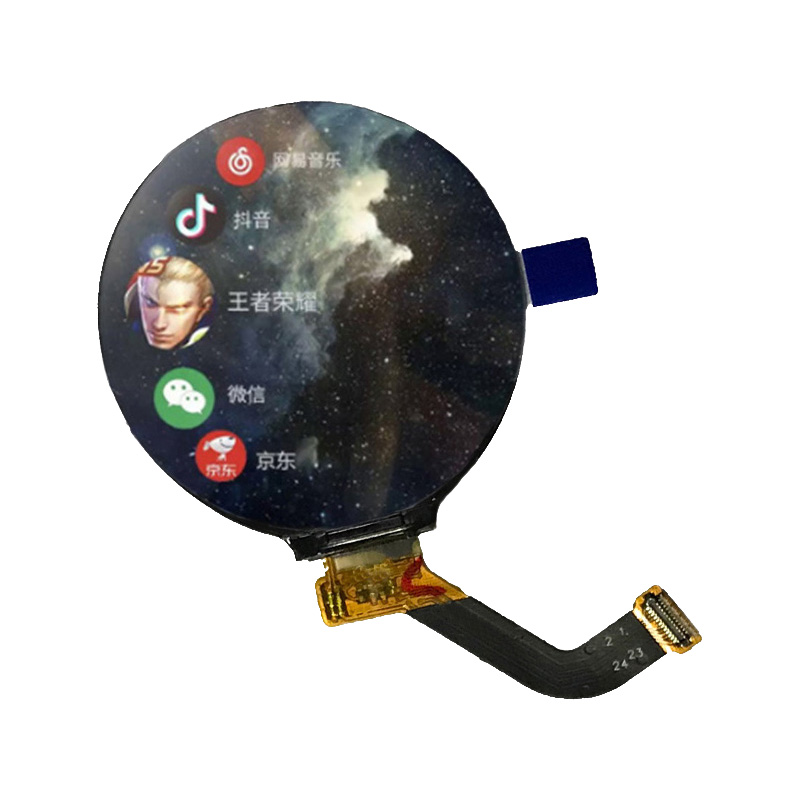

1.6 inch round TFT color screen

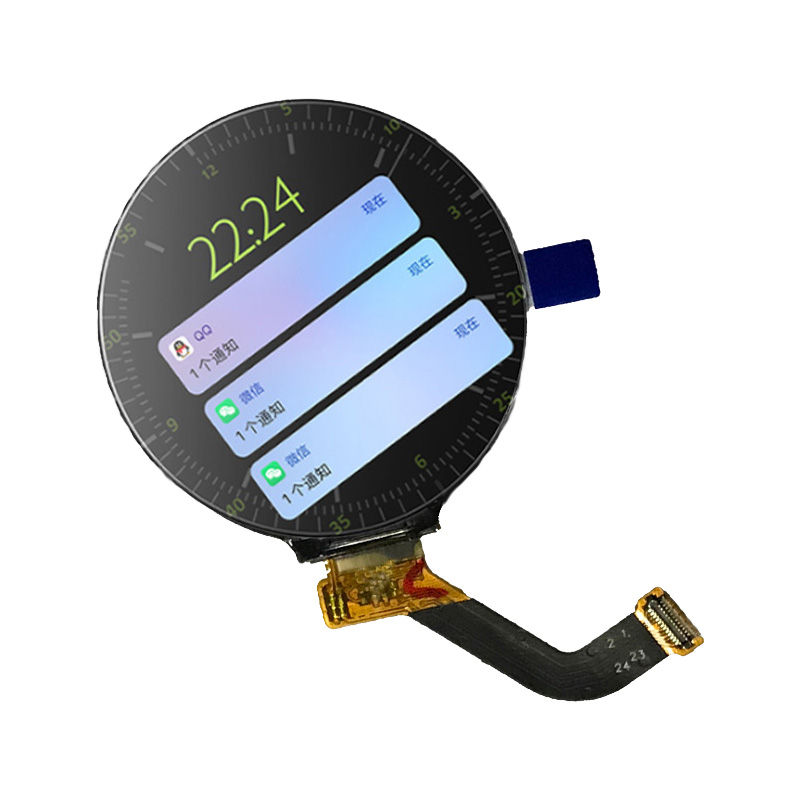

1.6 inch round TFT color screen
1.6 inch round TFT color screen

Golden Vision 1.6 Inch 400*400 TFT LCD Display Module LCD Screen

Part No: GVH0160

Panel Size: 1.60 Inch

LCD Type: IPS

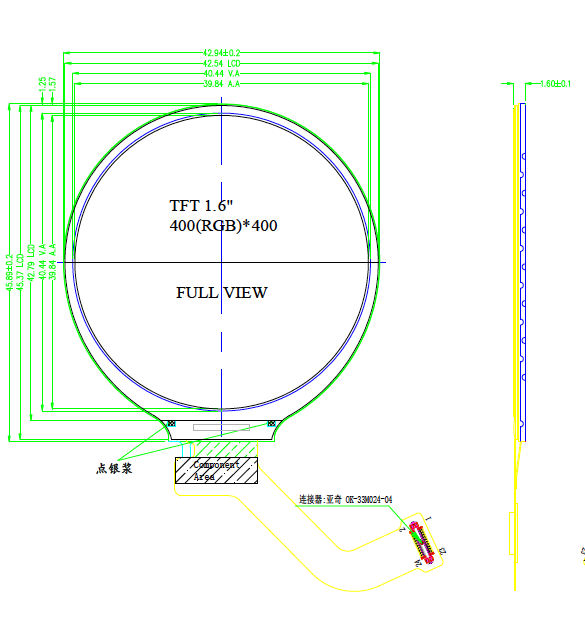

Module Size: 42.94x45.89 MM

Display Area: 39.84x39.84 MM

Number of Dots: 400x400

View angle: All

Driver IC: ST7789V

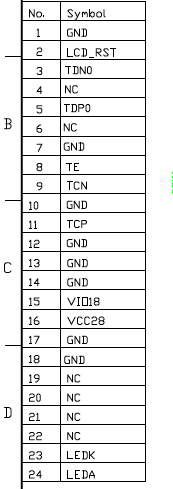

Interface Pins: 24 pin MIPI

Luminance: 350cd/m2



Inquiry now

Product Features:

  • It is a 1.60 inch transmissive type color active matrix liquid crystal display (LCD) module.
  • It is composed of a TFT LCD panel, driver IC, FPC and backlight unit.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & Resistive touch panel/ Demo board is available for your option.
  • Experienced Team for customized Solution.
  • Applicated for Infusion, AEDs, Sphygmomanometer, Ventilator, TPMS, Coffee Machine, IP Phone, Charging Pile...etc.
  • RoHS compliant.
