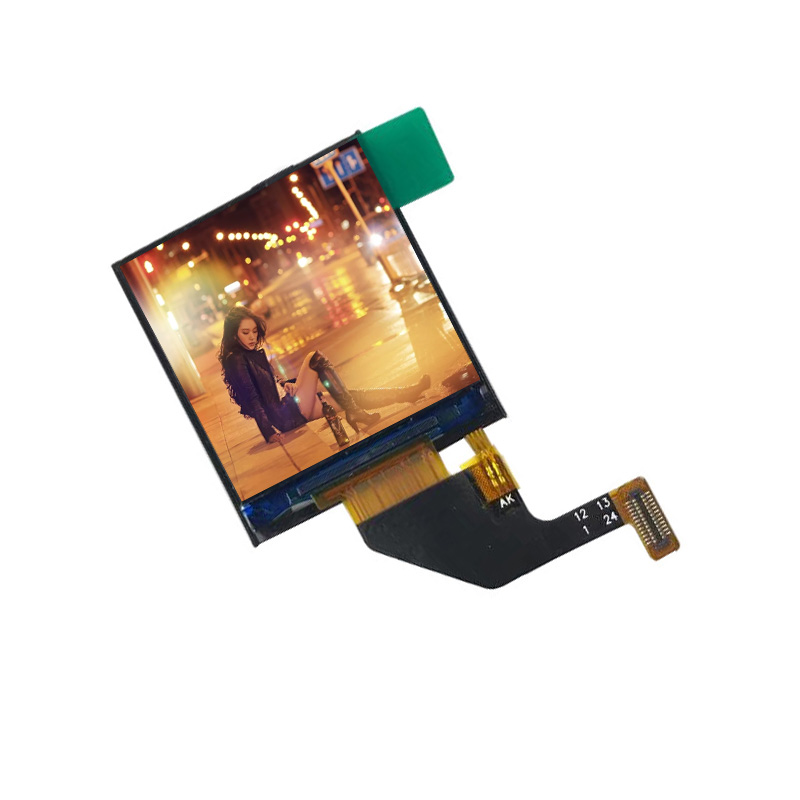

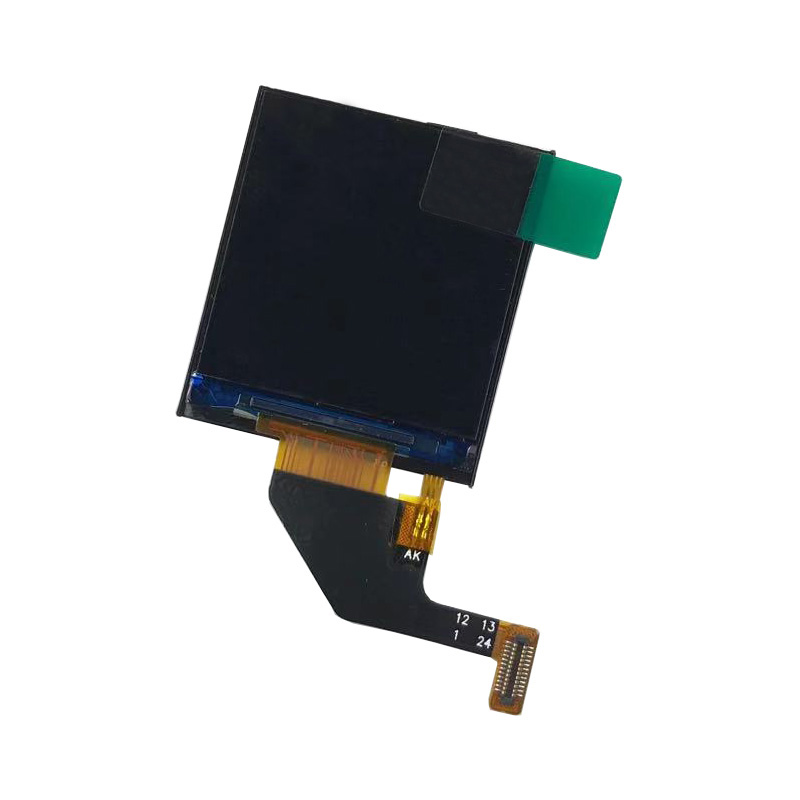

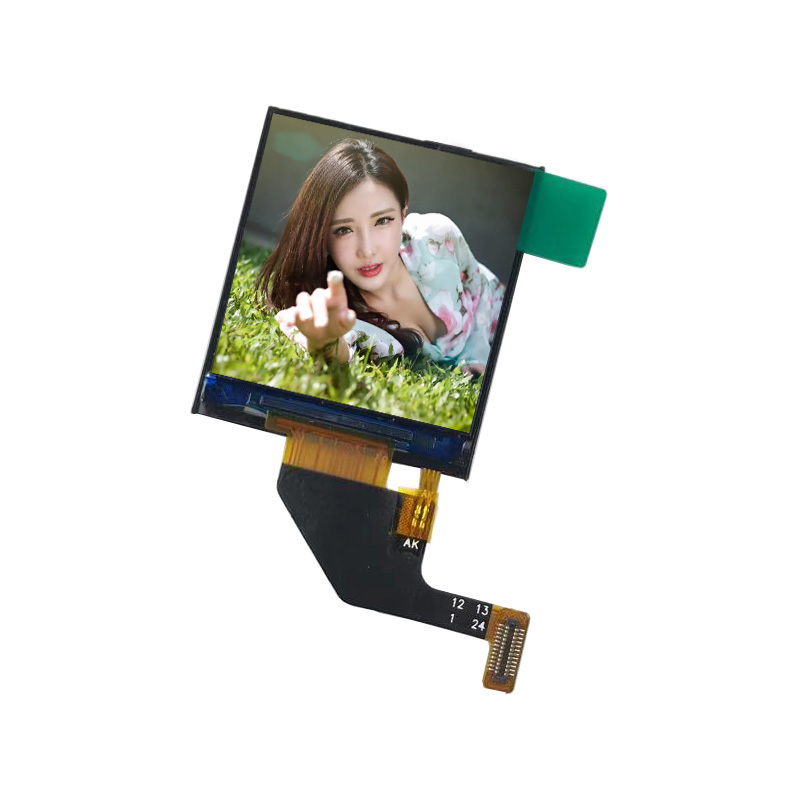

Golden Vision 1.40 Inch 240*240 TFT LCD Display Module LCD Screen
Part No: GVH0140
Panel Size: 1.40 Inch
LCD Type: IPS
Module Size: 27.9x31.35 MM
Display Area: 25.9x25.9 MM
Number of Dots: 240x240
View angle: All
Driver IC: ST7789V

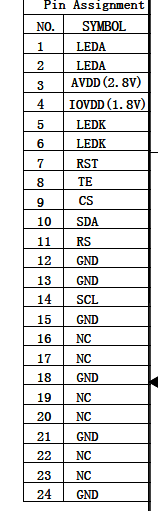

Interface Pins: 24 pin SPI
Luminance: 350cd/m2
Product Features:
This is a 1.40-inch transmissive color active matrix LCD module.
It consists of a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to meet your specific requirements.
Optional capacitive and resistive touch panels, as well as demo boards, are available for selection.
Our experienced team offers tailored solutions to fit your needs.
Suitable for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
Compliant with RoHS standards for environmental responsibility.

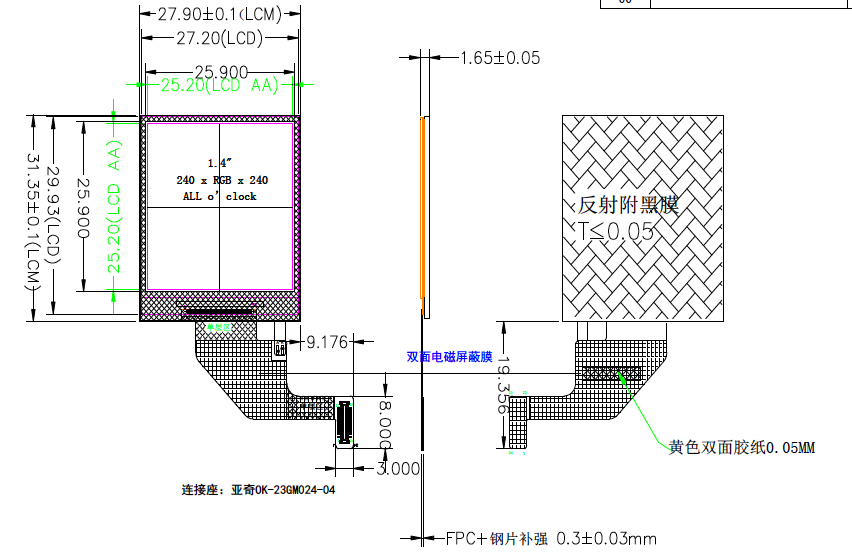

Product Drawing:
