Golden Vision Mono LCD 76.3X65.55 MM Segment Display HTN/Negative/Transmissive with PCB LCD Module

Golden Vision Mono LCD 76.3X65.55 MM Segment Display HTN/Negative/Transmissive with PCB LCD Module

Part No: GVH001028-MISG

Display mode: HTN/Negative/Transmissive with PCB

Driving condition: 1/4 duty, 1/3 bias, vdd=5V

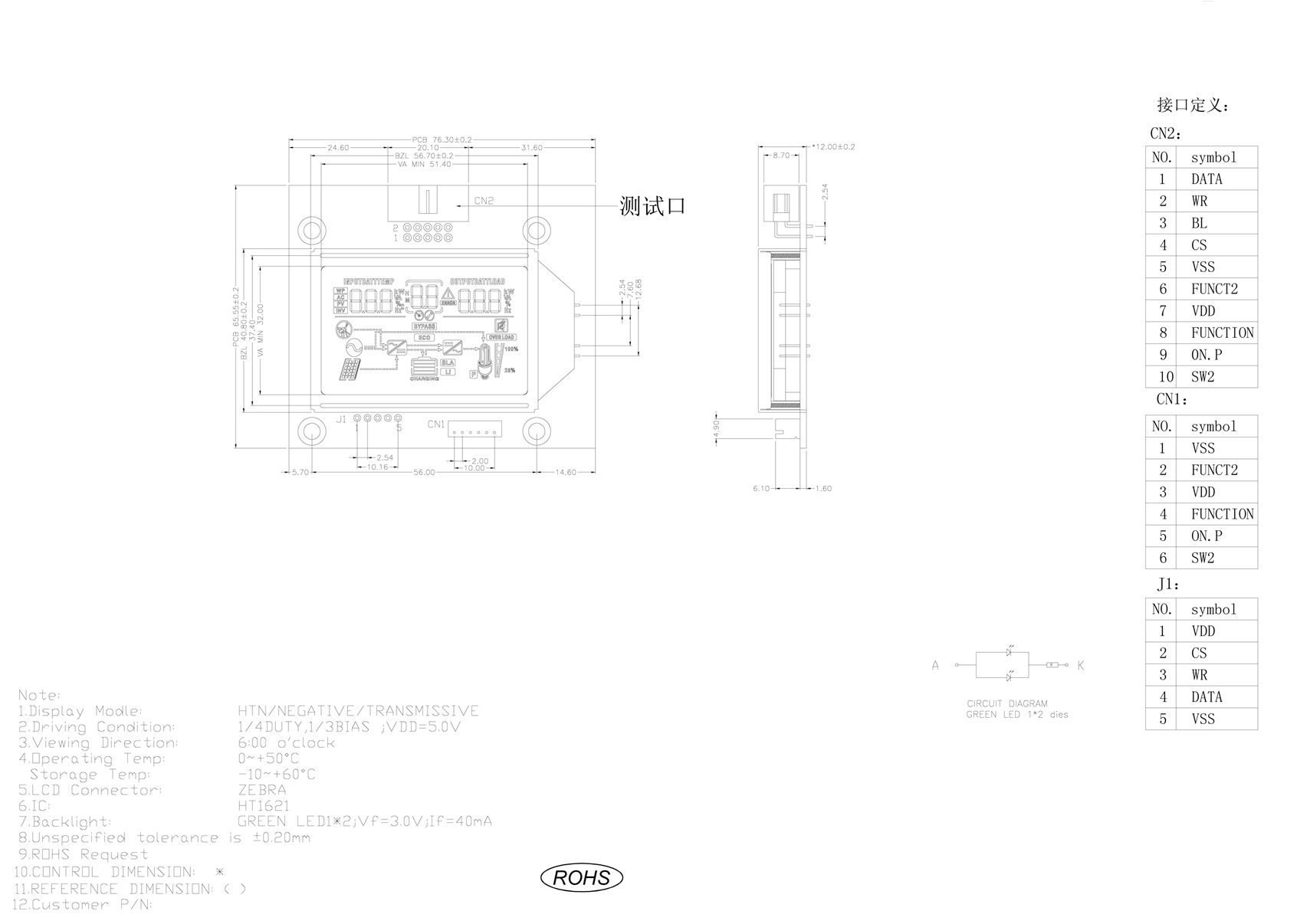

Module Size: 76.3x65.55 MM

Display Area: 51.4x32 MM

Number of Dots: segment

View angle: 6:00 o'clock

Driver IC: HT1621

Interface Pins: 10 pins SPI

Operating Temp: 0~50

Storage Temp: -10~60

LCD connector: COB

Backlight: white LED*2, VF=3V, IF=40mA



Product Features:

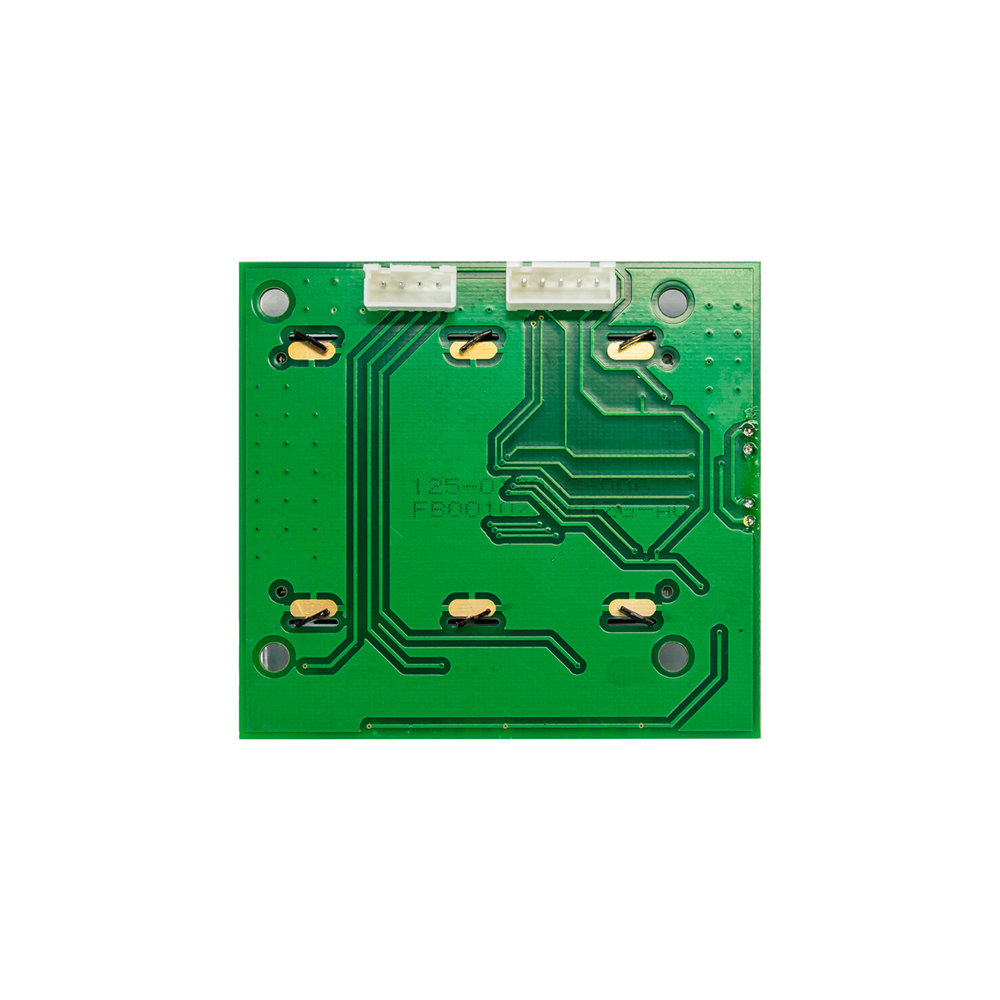

  • It is a HTN/negative/transmissive type segment liquid crystal display (LCD) with PCB.
  • It is composed of a LCD panel, driver IC, PCB and backlight.
  • Backlight with different brightness is customized according to customer request.
  • Experienced team for customized solution.
  • Applicated for electric meter, instrument, home appliance, printer, scanner and medical equipment.
