Golden Vision 114x85 MM Segment Display VA/Negative/Transmissive/PCB LCD Module

Golden Vision 114x85 MM Segment Display VA/Negative/Transmissive/PCB LCD Module

Part No: GVH001061-VKZW

Display mode: VA/Negative/Transmissive/PCB

Driving condition: 1/4 duty, 1/3 bias, vdd= 5V

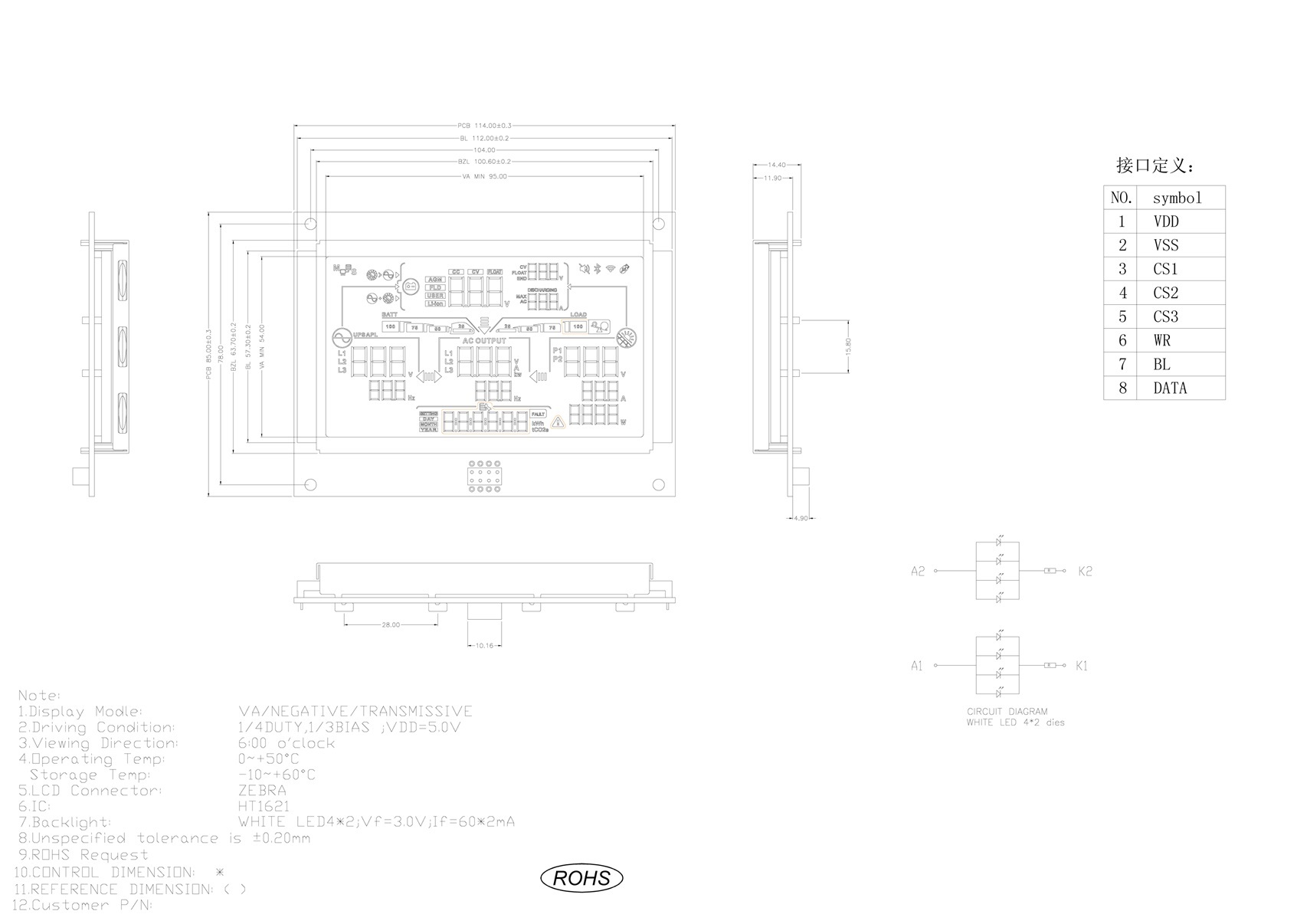

Module Size: 114x85 MM

Display Area: 95x54 MM

Number of Dots: segment

View angle: 6:00 o'clock

Driver IC: HT1621

Interface Pins: 8 pins SPI

Operating Temp: 0~50

Storage Temp: -10~60

LCD connector: COB

Backlight: white LED*2, VF=3V, IF=60*2mA



Product Features:

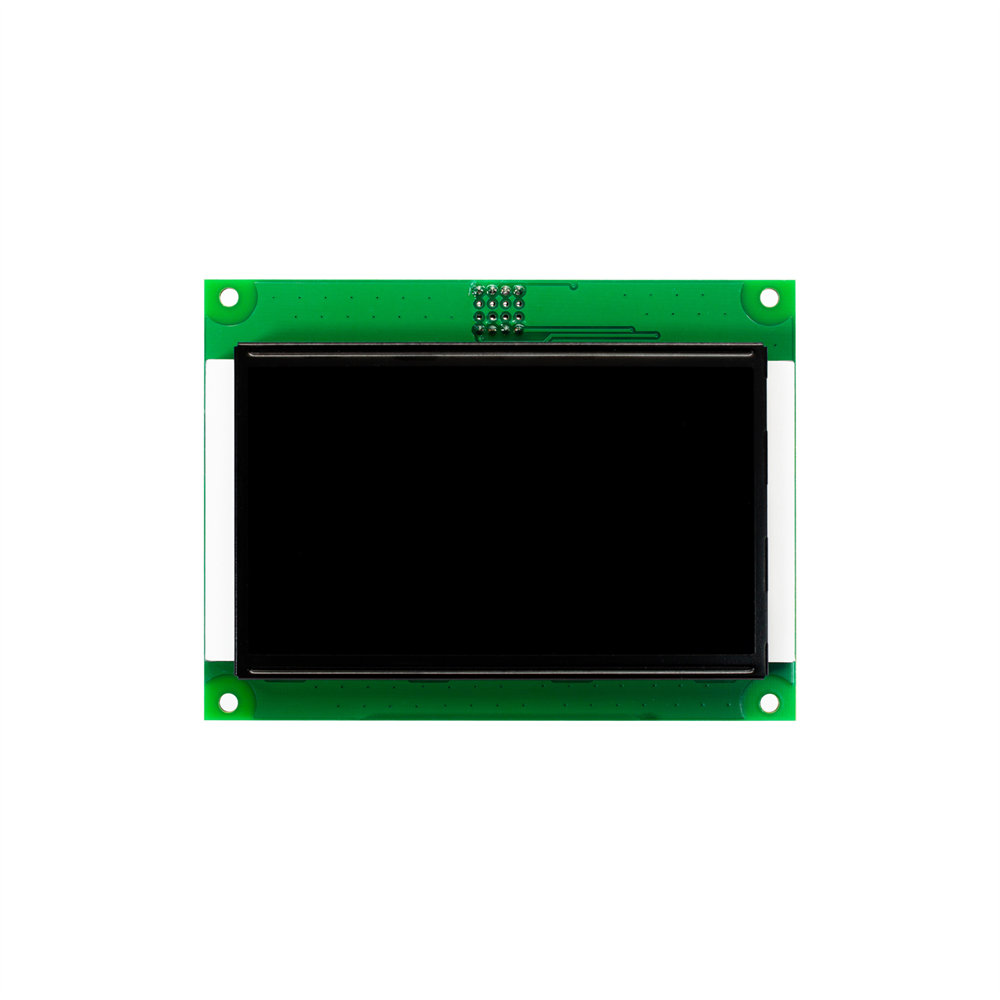

This is a VA/negative/transmissive type segment liquid crystal display (LCD) with PCB.

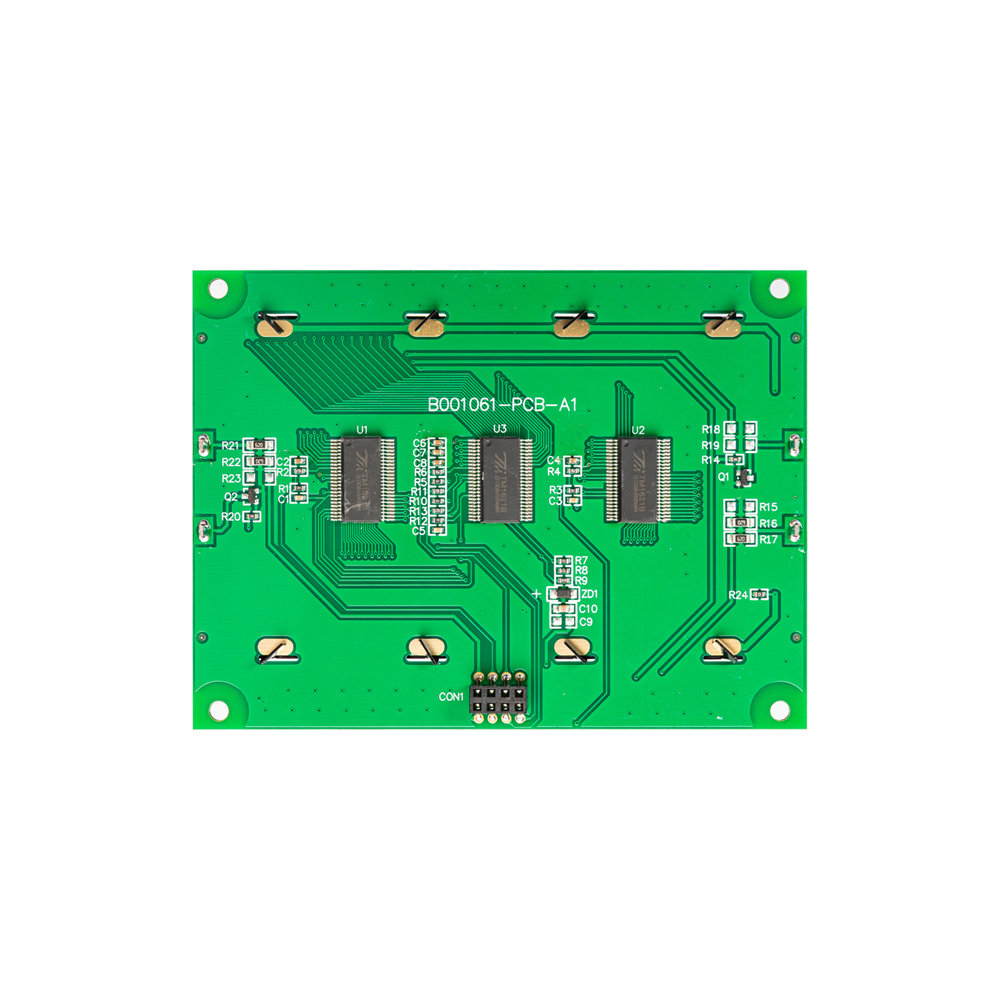

It includes an LCD panel, driver IC, PCB, and backlight.
The backlight brightness can be customized based on customer specifications.
Our experienced team provides tailored solutions to meet unique requirements.
Suitable for applications in electric meters, instruments, home appliances, printers, scanners, thermostats, and medical equipment.
