Golden Vision 7.8 Inch 480*1280 IPS TFT LCD Display Module Touch Screen

Home

Capacitive/Resistive Touch screen

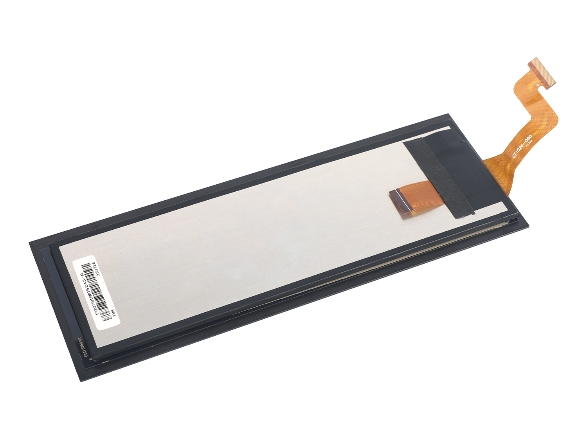

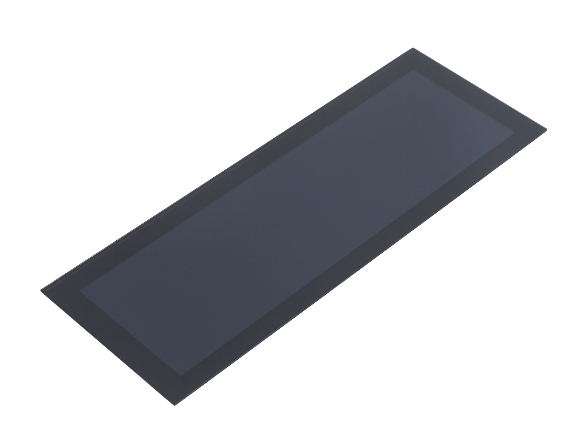

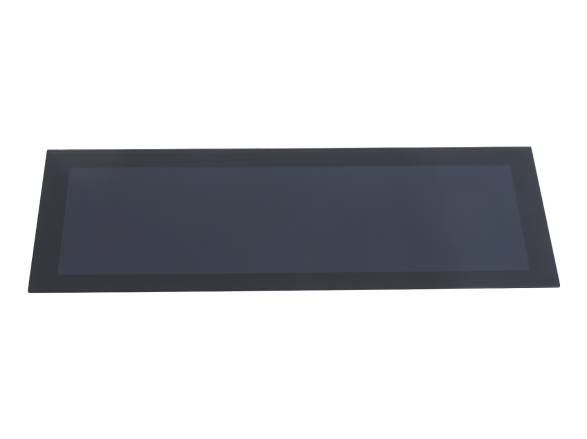

Golden Vision 7.8 Inch 480*1280 IPS TFT LCD Display Module Touch Screen

IPS TFT LCD Module
7.8 Inch TFT LCD Display
Custom TFT LCD Display
IPS TFT LCD Display Module
7.8" LCD Display Module

Golden Vision 7.8 Inch 480*1280 IPS TFT LCD Display Module Touch Screen

Part No: GVH078HD001B-A0

Panel Size: 7.8 Inch

LCD Type: IPS

Module Size: 78.95x212.04x4.925 MM

Display Area: 59.40x190.08 MM

Number of Dots: 480x1280

View angle: ALL

Driver IC: NV3051F1

Interface Pins: 40 pin MIPI

LED Numbers: 12 LED

Luminance: 450cd/m2

With or without TP: CTP



Inquiry now

Product Features:

  • It is a 7.8 inch transmissive type color active matrix liquid crystal display (LCD) module with CTP.
  • It is composed of a TFT LCD panel, driver IC, FPC, backlight unit, touch panel and cover glass.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & Resistive touch panel/ Demo board is available for your option.
  • Experienced Team for customized Solution.
  • Applicated for Infusion, AEDs, Sphygmomanometer, Ventilator, TPMS, Coffee Machine, IP Phone, Charging Pile...etc.
  • RoHS compliant.
Hot Tags : 7.8 Inch TFT LCD Display Custom TFT LCD Display IPS TFT LCD Module IPS TFT LCD Display Module 7.8" LCD Display Module 7.8 Inch TFT LCD Display Touch Screen
