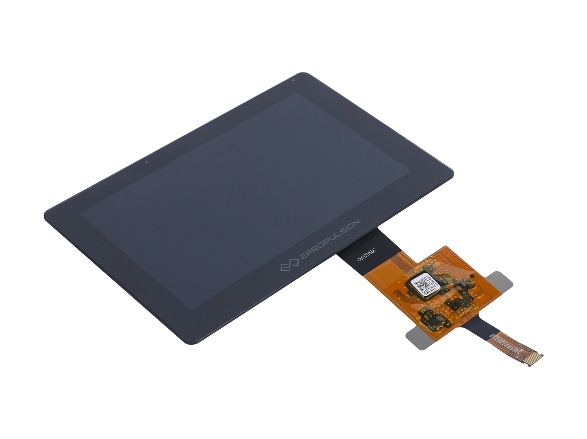

Golden Vision 5.0 Inch 800*480 IPS TFT LCD Display Module Touch Screen

Part No: GVH050HD17H-A2

Panel Size: 5.0 Inch

LCD Type: IPS

Module Size: 129x84.4x6.89 MM

Display Area: 108x64.8 MM

Number of Dots: 800x480

View angle: ALL

Driver IC: EXC80W32

Interface Pins: 40 pin RGB

LED Numbers: 12 LED

Luminance: 1050cd/m2

With or without TP: CTP



Inquiry now

Product Features:

  • It is a 5 inch transmissive type color active matrix liquid crystal display (LCD) module with CTP.
  • It is composed of a TFT LCD panel, driver IC, FPC, backlight unit, touch panel and cover glass.
  • Backlight with different brightness is customized according to your request.
  • Capacitive & Resistive touch panel/ Demo board is available for your option.
  • Experienced Team for customized Solution.
  • Applicated for Infusion, AEDs, Sphygmomanometer, Ventilator, TPMS, Coffee Machine, IP Phone, Charging Pile...etc.
  • RoHS compliant.
Hot Tags : 5.0 Inch TFT LCD Display Custom TFT LCD Display IPS TFT LCD Module IPS TFT LCD Display Module 5.0" LCD Display Module 5.0 Inch TFT LCD Display Touch Screen
