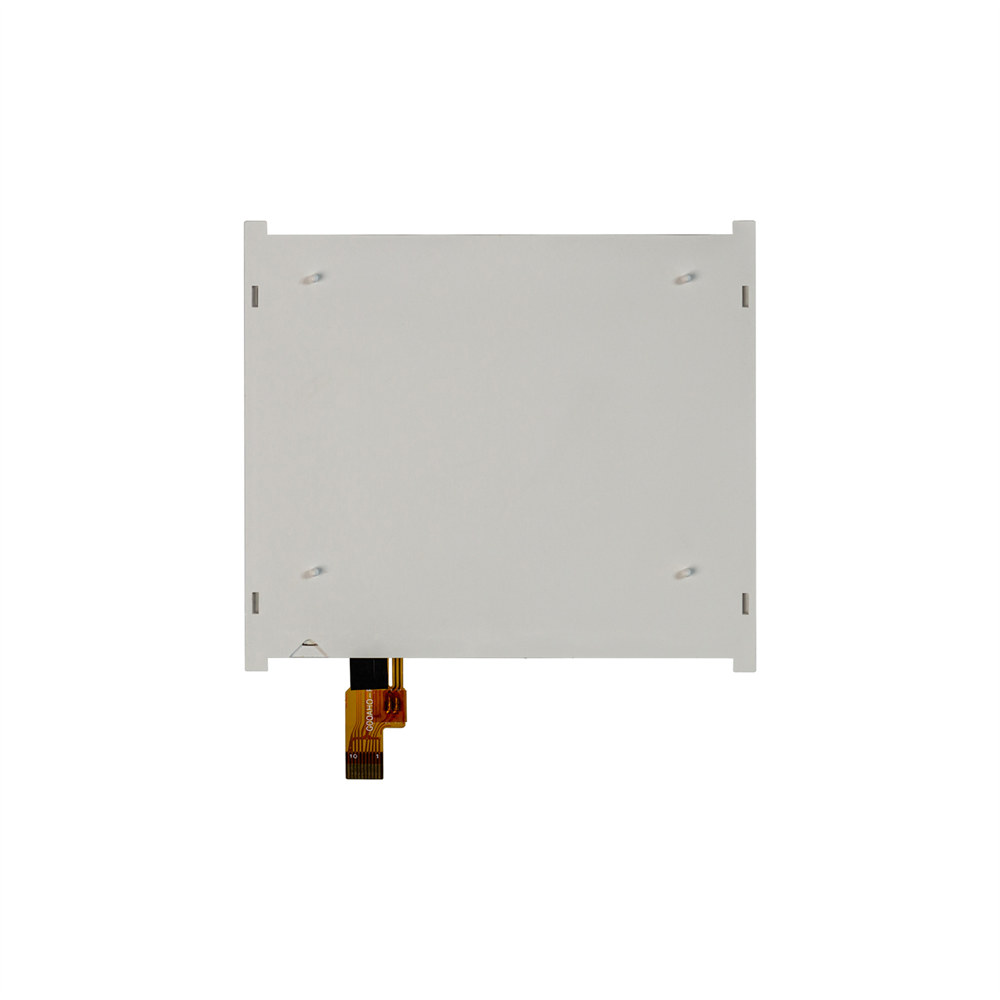

Golden Vision Mono LCD Segment Display 74.3X66.1 MM HTN/Positive/Transflective LCD Module

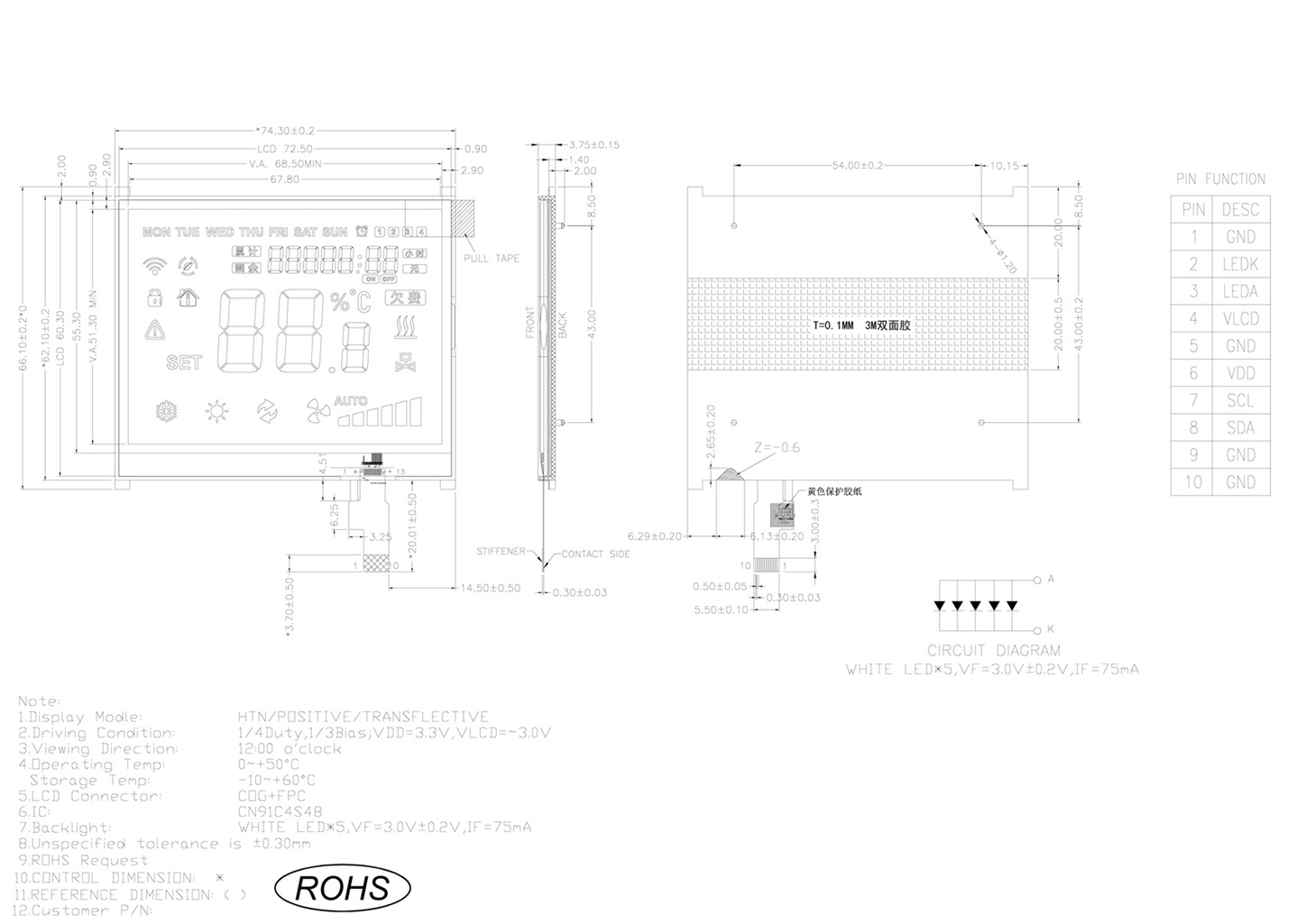

Part No: GVH00AHO-TFBW

Display mode: HTN/POSITIVE/Transflective

Driving condition: 1/4 duty, 1/3 bias, VDD=3.3v, vlcd=3.0v

Module Size: 74.3X66.1 MM

Display Area: 67.8X51.3 MM

Number of Dots: Segment

View angle: 12:00 o'clock

Driver IC: CN91C4S48

Interface Pins: 7 PINS SPI

Operating Temp: 0~50

Storage Temp: -10~60

LCD connector: COG+FPC

Backlight: white LED*5, VF=3V, IF=75mA



Inquiry now

Product Features:

This is an HTN/positive/transflective segment liquid crystal display (LCD). It consists of an LCD panel, driver IC, FPC, and backlight, with customizable backlight brightness available upon request. Our experienced team is prepared to provide tailored solutions to meet your specific needs. This display is ideal for applications in electric meters, instruments, home appliances, printers, scanners, and medical equipment.

Hot Tags : Mono LCD Segment Display Mono Segment LCD Mono Segment LCD Manufacturer Customized Mono LCD Segment Display Monochrome Lcd Segment Display
